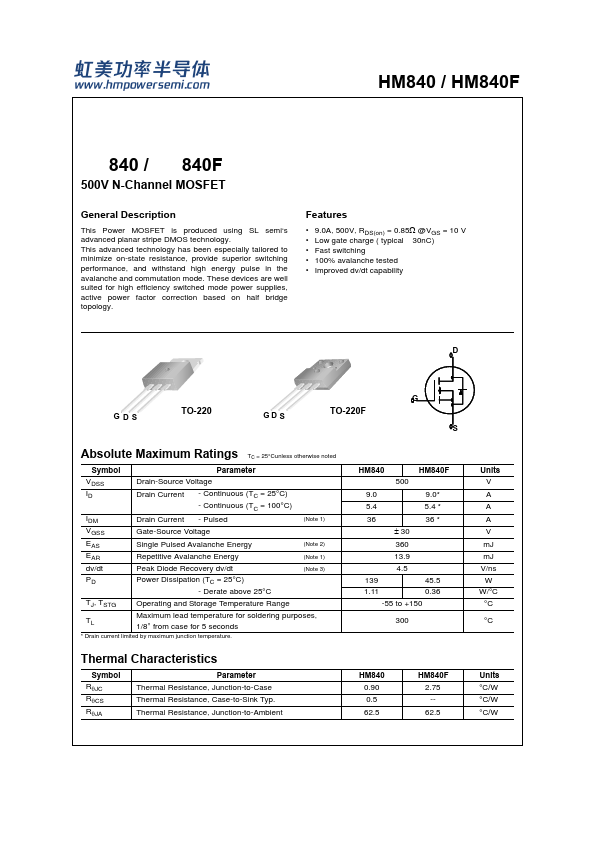

HM840F, HM840 - 500V N-Channel MOSFET

H&M Semiconductor

Datasheet Details

Part number	HM840F, HM840
Manufacturer	H&M Semiconductor
File Size	297.89 KB
Description	500V N-Channel MOSFET
Datasheet	HM840-HMSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: HM840F, HM840. Please refer to the document for exact specifications by model.

This Power MOSFET is produced using SL semi‘s advanced planar stripe DMOS technology.

9.0A, 500V, RDS(on) = 0.85Ω @VGS = 10 V.
Low gate charge ( typical 30nC).
Fast switching.
100% avalanche tested.
Improved dv/dt capability {D GDS TO-220 GD S TO-220F.
◀▲ {G.
{S Absolute Maximum Ratings TC = 25°Cunless otherwise noted Symbol Parameter VDSS Drain-Source Voltage ID Drain Current - Continuous (TC = 25°C) - Continuous (TC = 100°C) IDM Drain Current - Pulsed (Note 1) VGSS Gate-Source Voltage EAS Si.
