HM70N75 - N-Channel Trench Power MOSFET

Product Overview

📥 Download Datasheet

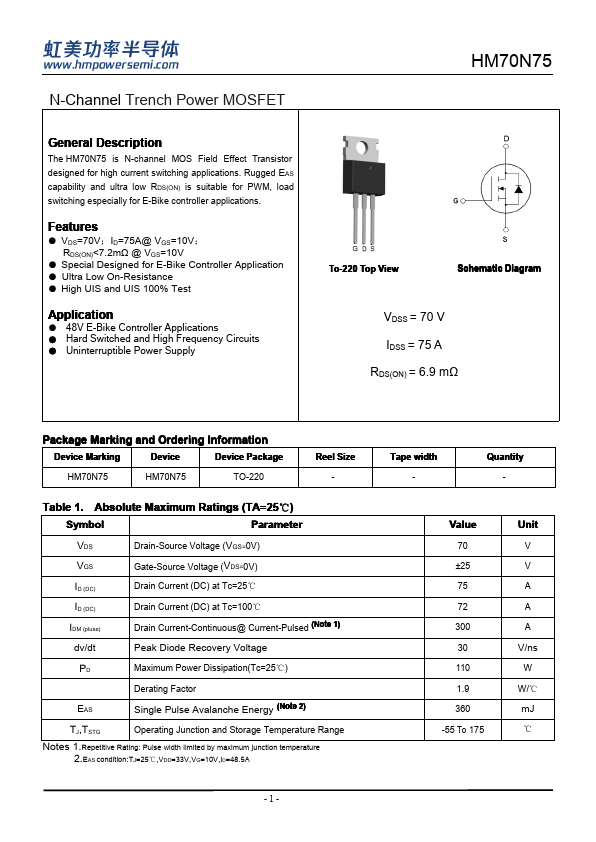

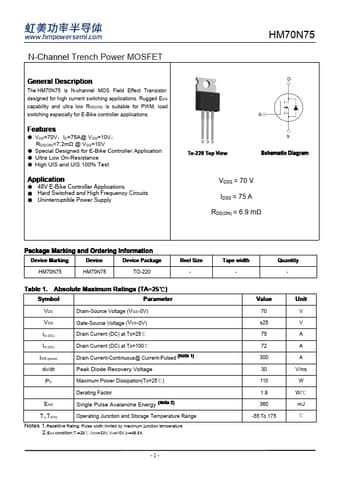

Datasheet preview – HM70N75

Datasheet Details

Part number HM70N75
Manufacturer H&M Semiconductor
File Size 454.48 KB
Description N-Channel Trench Power MOSFET
Datasheet download datasheet HM70N75-HMSemiconductor.pdf

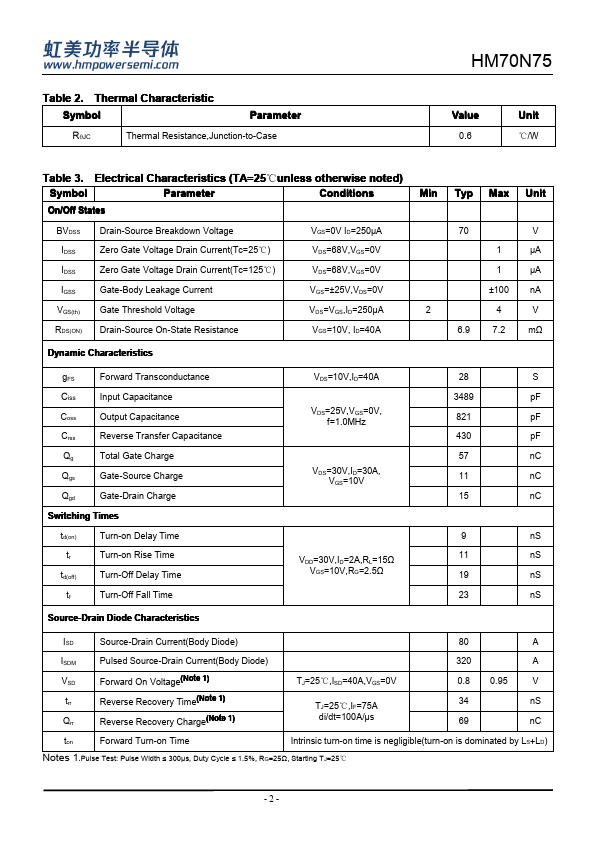

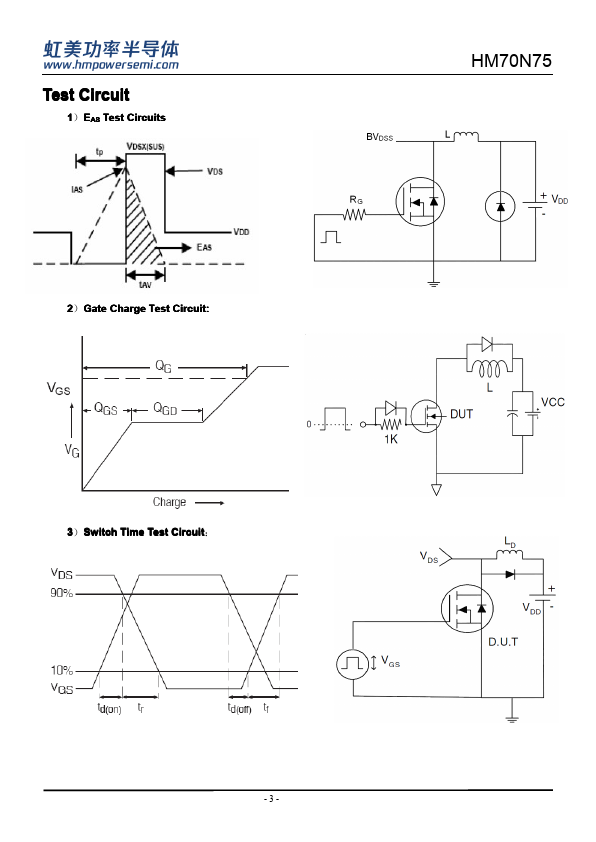

Additional preview pages of the HM70N75 datasheet.

Product details

Description

The HM70N75 is N-channel MOS Field Effect Transistor designed for high current switching applications.

Features
