HM4615B - N and P-Channel Enhancement Mode Power MOSFET

HM4615B Description

HM4615B N and P-Channel Enhancement Mode Power MOSFET .
The HM4615B uses advanced trench technology to provide excellent RDS(ON) and low gate charge .

HM4615B Features

* N-Channel VDS = 100V,ID =4.0A RDS(ON) < 80mΩ @ VGS=10V N-channel P-channel Schematic diagram
* P-Channel VDS =100V,ID =-3.5A RDS(ON)

📥 Download Datasheet

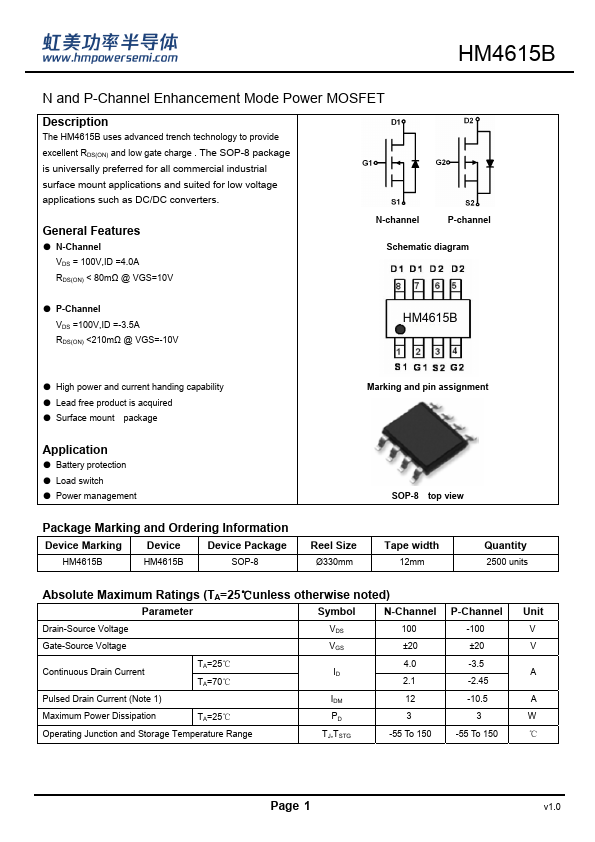

Preview of HM4615B PDF

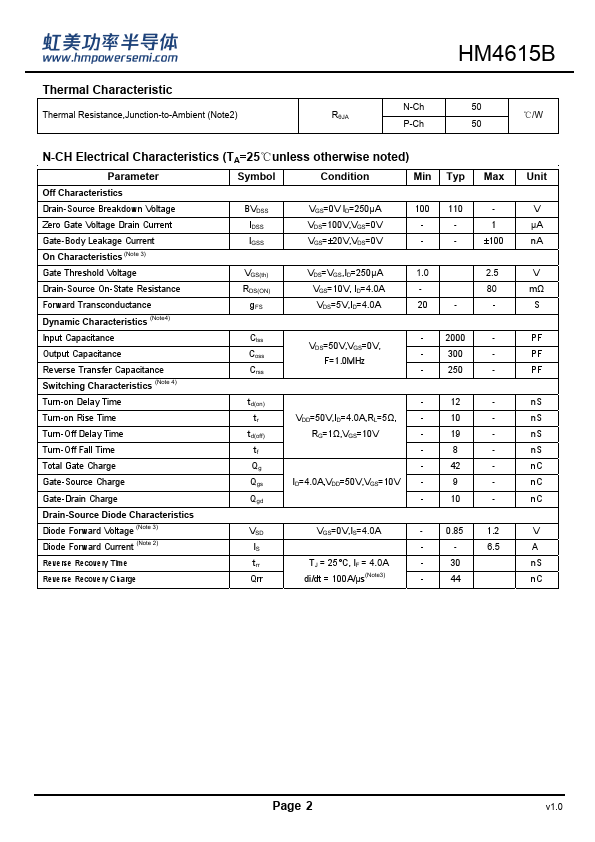

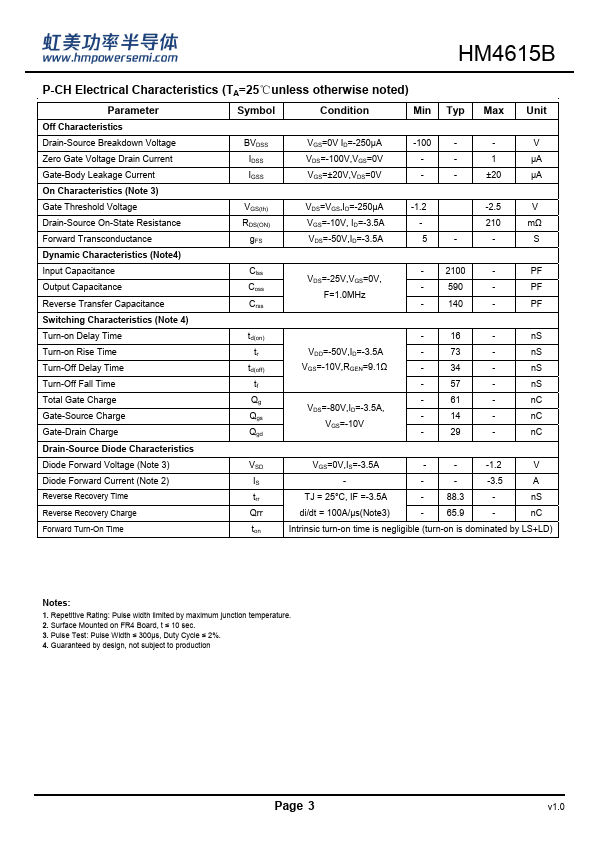

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM4615B
Manufacturer
H&M Semiconductor
File Size
908.59 KB
Datasheet
HM4615B-HMSemiconductor.pdf
Description
N and P-Channel Enhancement Mode Power MOSFET
