HM45P02D - P-Channel Enhancement Mode Power MOSFET

HM45P02D Description

HM45P02D P-Channel Enhancement Mode Power MOSFET .
The HM45P02D uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

HM45P02D Features

* VDS =-20V,ID =-45A RDS(ON) < 7mΩ @ VGS=-4.5V RDS(ON) < 9mΩ @ VGS=-2.5V RDS(ON) < 12mΩ @ VGS=-1.8V
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current
* Good stability and uniformity with high EAS
* Excellent package for good heat d

📥 Download Datasheet

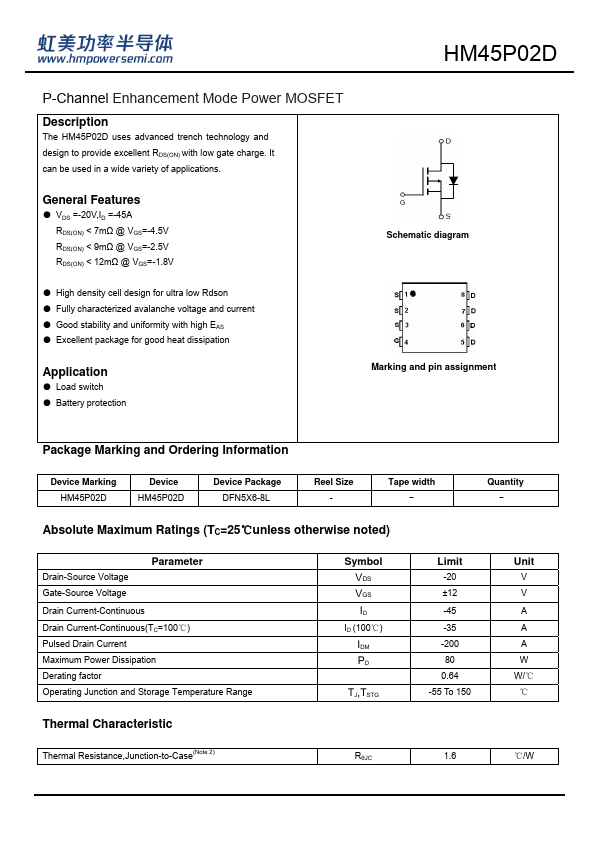

Preview of HM45P02D PDF

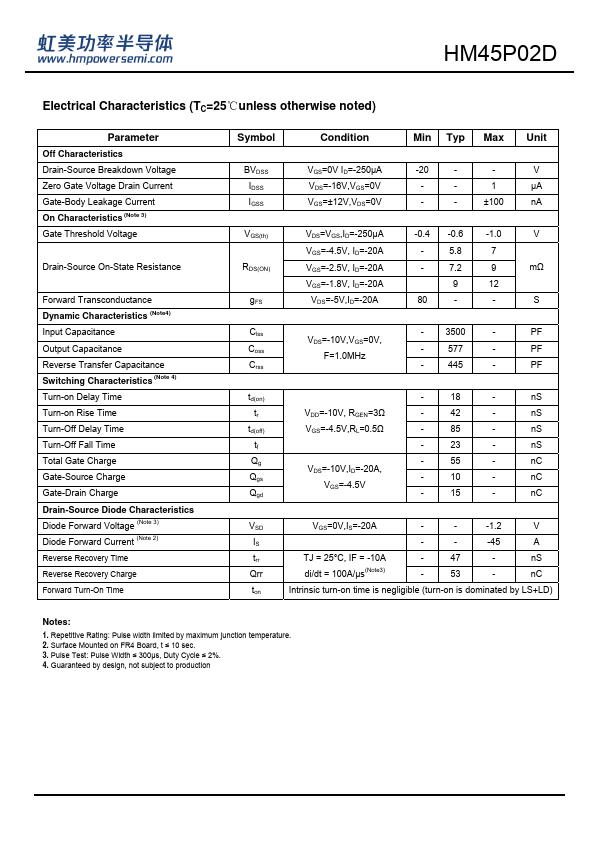

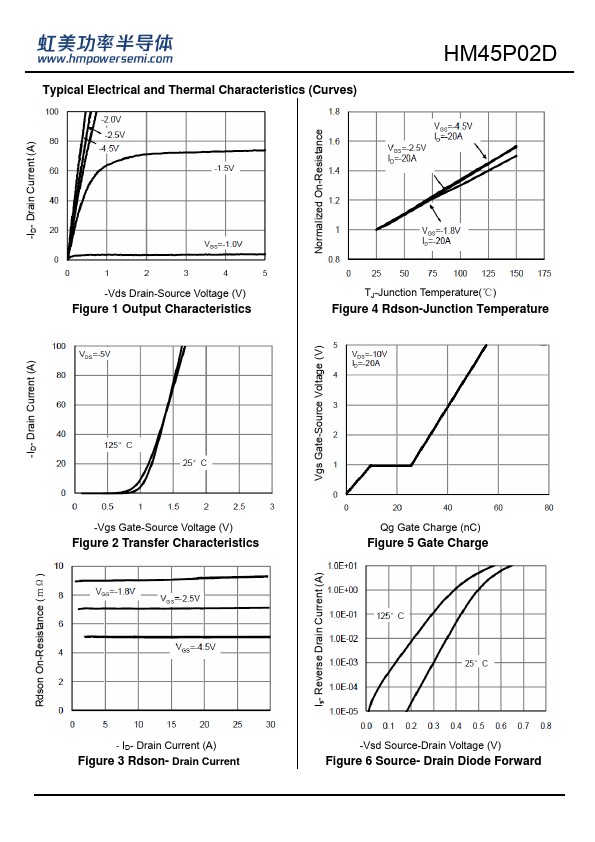

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM45P02D
Manufacturer
H&M Semiconductor
File Size
474.18 KB
Datasheet
HM45P02D-HMSemiconductor.pdf
Description
P-Channel Enhancement Mode Power MOSFET
