HM4490B - N-Channel Enhancement Mode Power MOSFET

HM4490B Description

N-Channel Enhancement Mode Power MOSFET .
The HM4490B uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

HM4490B Features

* VDS =200V,ID =2A RDS(ON) < 79mΩ @ VGS=10V （Typ：580mΩ） Schematic diagram
* High density cell design for ultra low Rdson
* Fully characterized avalanche voltage and current

📥 Download Datasheet

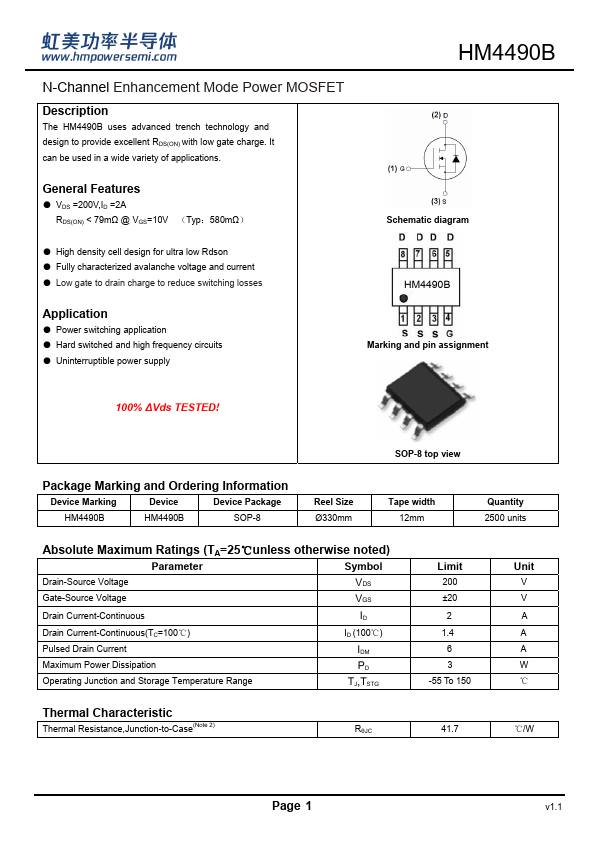

Preview of HM4490B PDF

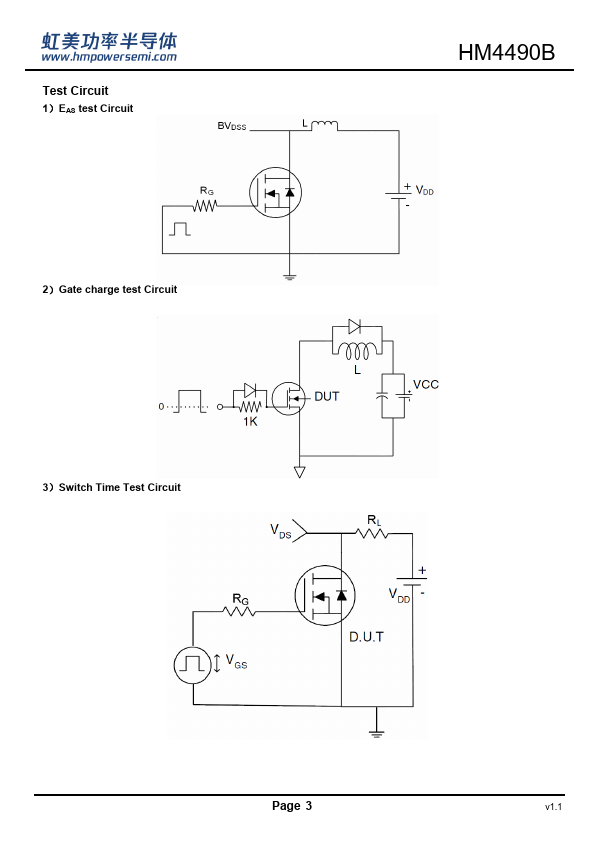

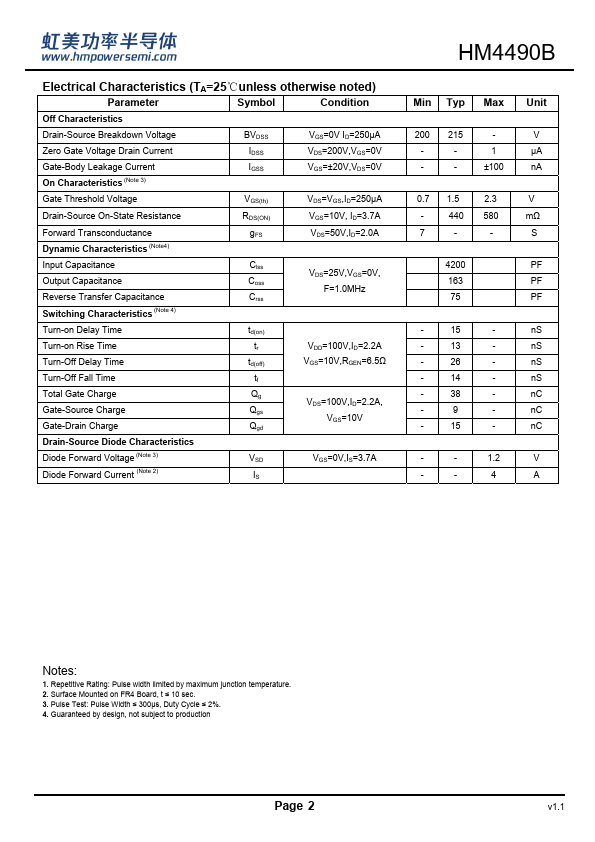

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM4490B
Manufacturer
H&M Semiconductor
File Size
613.18 KB
Datasheet
HM4490B-HMSemiconductor.pdf
Description
N-Channel Enhancement Mode Power MOSFET
