HM3801D P-Channel Enhancement Mode Power MOSFET

HM3801D Description

HM3801D P-Channel Enhancement Mode Power MOSFET .
The HM3801D uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.

HM3801D Features

* VDS = -30V,ID = -4.6A RDS(ON) < 120mΩ @ VGS=-2.5V RDS(ON) < 65mΩ @ VGS=-4.5V RDS(ON) < 55mΩ @ VGS=-10V
* High Power and current handing capability
* Lead free product is acquired

📥 Download Datasheet

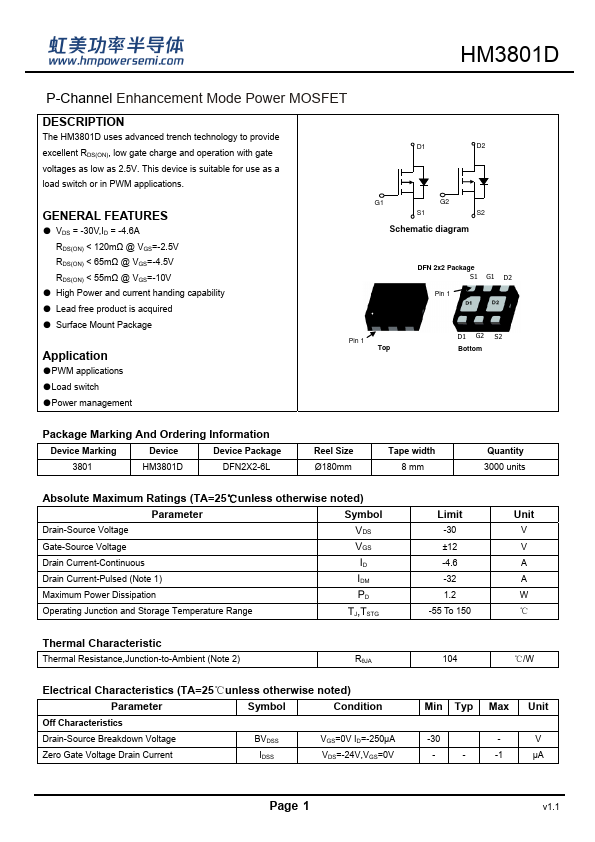

Preview of HM3801D PDF

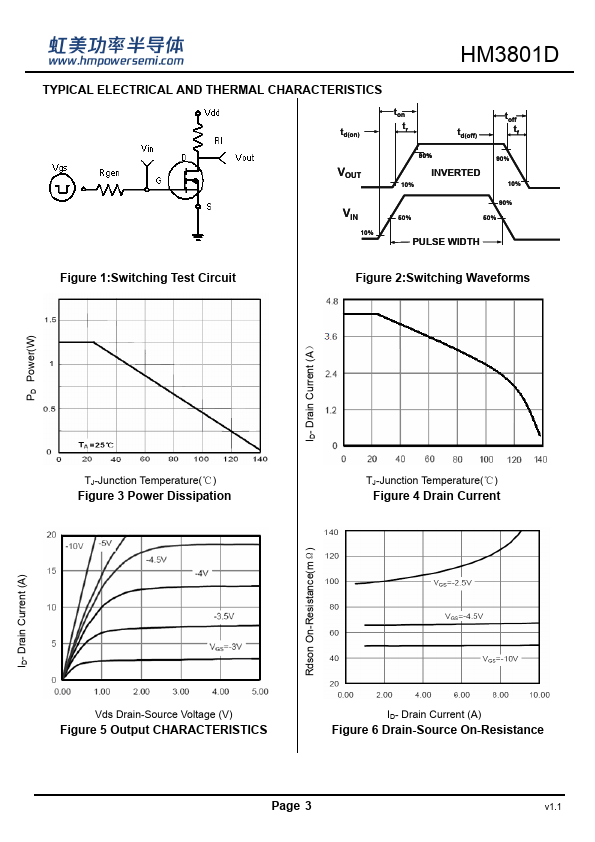

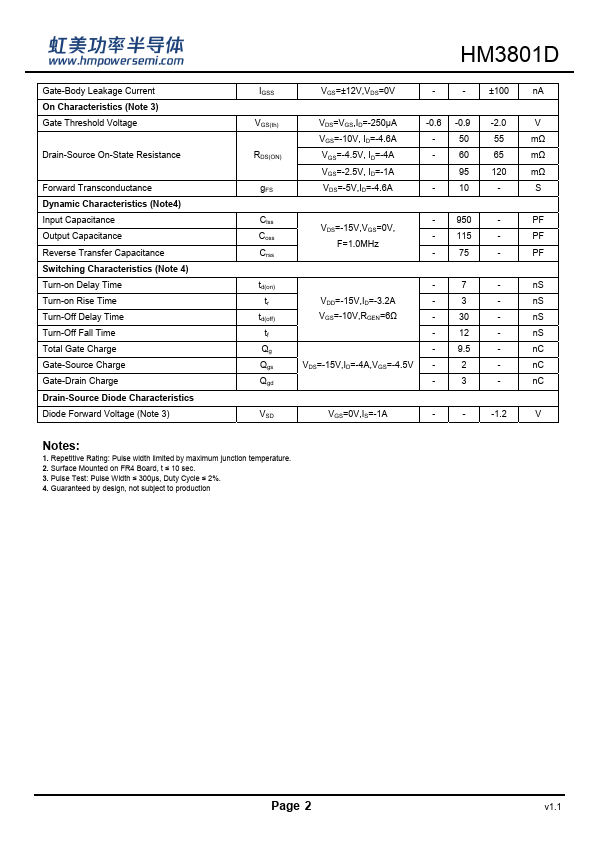

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HM3801D
Manufacturer
H&M Semiconductor
File Size
677.11 KB
Datasheet
HM3801D-HMSemiconductor.pdf
Description
P-Channel Enhancement Mode Power MOSFET
