HM10N80A - N-channel Enhanced VDMOSFET

H&M Semiconductor

📥 Download Datasheet

HM10N80A Datasheet Preview — Preview of HM10N80A PDF

Datasheet Details

Part number	HM10N80A
Manufacturer	H&M Semiconductor
File Size	807.85 KB
Description	N-channel Enhanced VDMOSFET
Datasheet	HM10N80A-HMSemiconductor.pdf

HM10N80A Product details

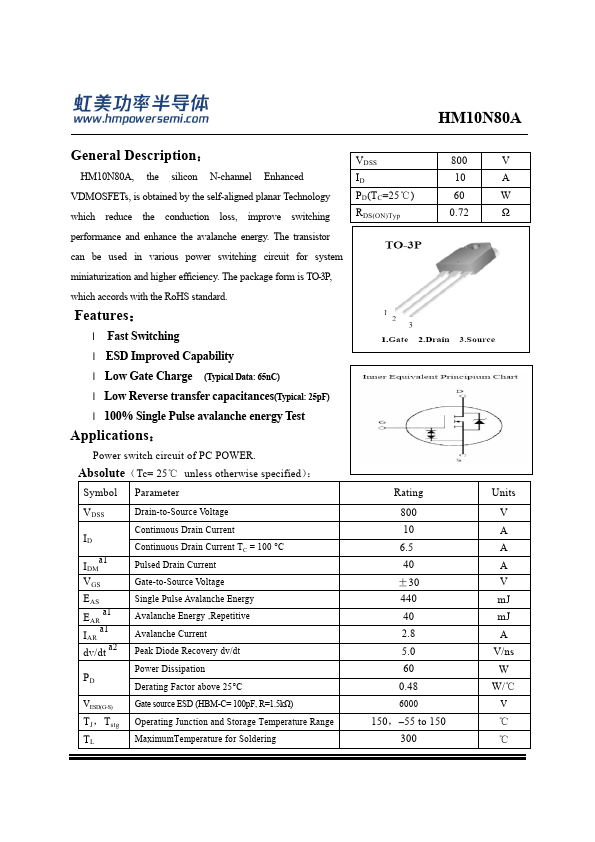

Description

VDSS 800 HM10N80A, the silicon N-channel Enhanced ID 10 VDMOSFETs, is obtained by the self-aligned planar Technology PD(TC=25℃) 60 which reduce the conduction loss, improve switching RDS(ON)Typ 0.72 performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is TO-3P, which accords with the RoHS standard.

Features

l Fast Switching l ESD Improved Capability l Low Gate Charge (Typical Data: 65nC) l Low Reverse transfer capacitances(Typical: 25pF) l 100% Single Pulse avalanche energy Test.
