SB26-A - SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Download the SB26-A datasheet PDF. This datasheet also covers the SB22-A variant, as both devices belong to the same surface mount schottky barrier rectifier family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SB22-A-GulfSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SB26-A
Manufacturer Gulf Semiconductor
File Size 247.46 KB
Description SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet SB26-A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SB260 SCHOTTKY RECTIFIER Sangdest Microelectronics
SB260 2.0A SCHOTTKY BARRIER RECTIFIER Diodes Incorporated
SB260 SCHOTTKY BARRIER RECTIFIER GOOD-ARK Electronics
SB260 2.0A SCHOTTKY BARRIER DIODE WON-TOP
SB260 SCHOTTKY BARRIER RECTIFIERS PAN JIT

Other Datasheets by Gulf Semiconductor

Part Number Description
SB26 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
SB20200CT SCHOTTKY BARRIER RECTIFIER
SB20200FCT SCHOTTKY BARRIER RECTIFIER
SB210 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
SB22 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

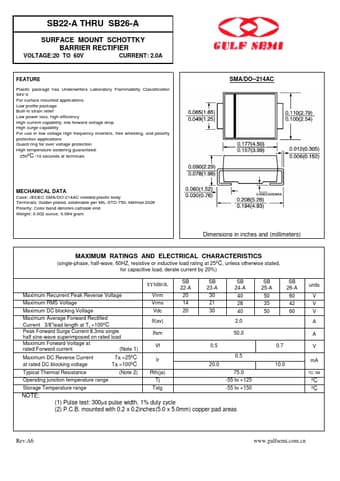

SB22-A THRU SB26-A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE:20 TO 60V CURRENT: 2.0A FEATURE Plastic package has Underwriters Laboratory Flammability Classification 94V-0 For surface mounted applications Low profile package Built-in strain relief Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage high frequency inverters, free wheeling, and polarity protection applications Guard ring for over voltage protection High temperature soldering guaranteed: 250ºC /10 seconds at terminals SMA/DO--214AC MECHANICAL DATA Case: JEDEC SMA/DO-214AC molded plastic body Terminals: Solder plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Weight: 0.002 ounce, 0.
