GR8853 - Self-oscillating Half-bridge Driver

Product Overview

Grenergy

📥 Download Datasheet

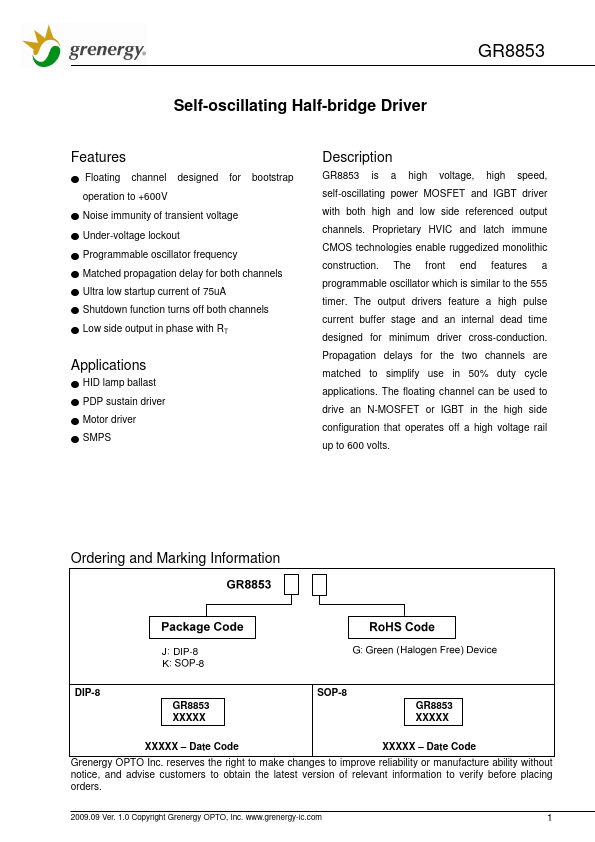

GR8853 Self-oscillating Half-bridge Driver by Grenergy - Datasheet Preview — Datasheet preview – GR8853

Datasheet Details

Part number	GR8853
Manufacturer	Grenergy
File Size	729.21 KB
Description	Self-oscillating Half-bridge Driver
Datasheet	GR8853 Datasheet

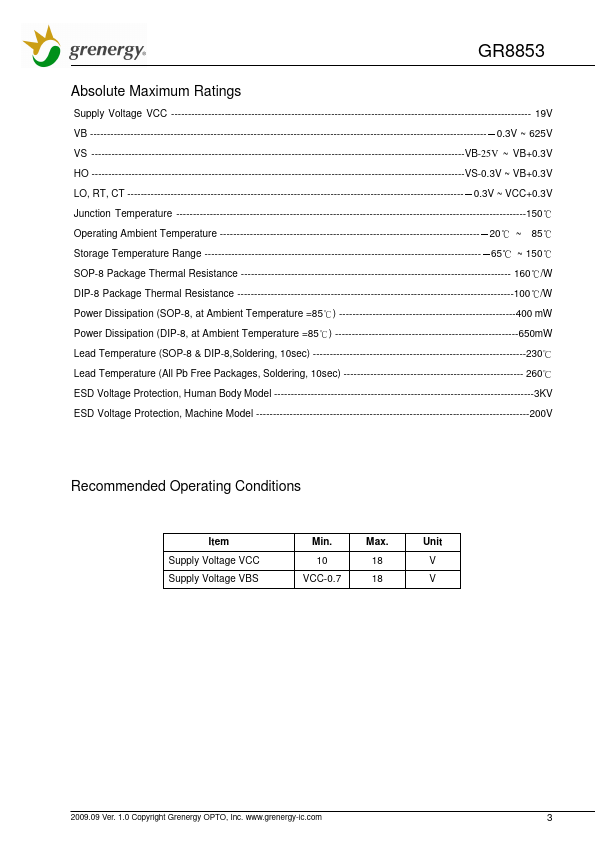

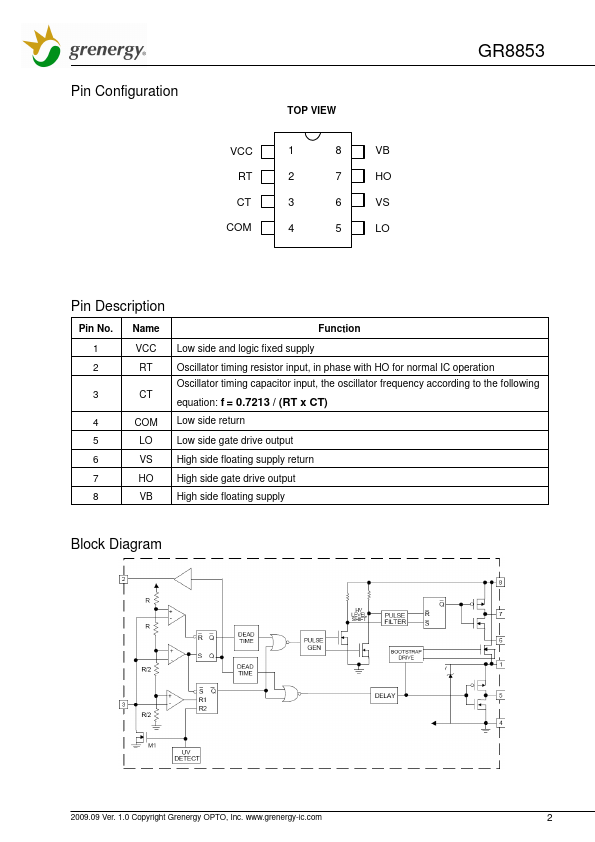

Additional preview pages of the GR8853 datasheet.

Product details

Description

GR8853 is a high voltage, high speed, self-oscillating power MOSFET and IGBT driver with both high and low side referenced output channels.

Features

Floating channel designed for bootstrap operation to +600V.
Noise immunity of transient voltage.
Under-voltage lockout.
Programmable oscillator frequency.
Matched propagation delay for both channels.
Ultra low startup current of 75uA.
Shutdown function turns off both channels.
Low side output in phase with RT.
