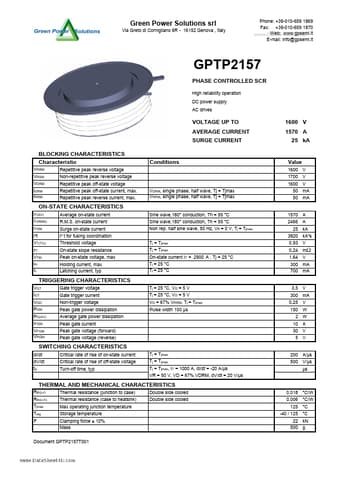

GPTP2157
Green Power Solutions srl
Via Greto di Cornigliano 6R
- 16152 Genova , Italy
Phone: +39-010-659 1869 Fax: +39-010-659 1870 Web: .gpsemi.it .. E-mail: info@gpsemi.it
PHASE CONTROLLED SCR
High reliability operation DC power supply AC drives
VOLTAGE UP TO AVERAGE CURRENT SURGE CURRENT BLOCKING CHARACTERISTICS Characteristic
VRRM VRSM VDRM IDRM IRRM Repetitive peak reverse voltage Non-repetitive peak reverse voltage Repetitive peak off-state voltage Repetitive peak off-state current, max. Repetitive peak reverse current, max. VDRM, single phase, half wave, Tj = Tjmax VRRM, single phase, half wave, Tj = Tjmax
1600 V 1570 A 25 k A
Conditions
Value
1600 V 1700 V 1600 V 50 m A 50 m A
ON-STATE CHARACTERISTICS
IT(AV) IT(RMS) ITSM I²t VT(TO) Average on-state current R.M.S. on-state current Surge on-state current I² t for fusing coordination Threshold voltage On-state slope resistance Peak on-state voltage, max Holding current, max Latching current, typ Tj = Tjmax Tj = Tjmax On-state...
