GSL304 Ultra Low Power Mobile EMI Reduction IC

GSL304 Description

GSL304 Ultra Low Power Mobile EMI Reduction IC Product .
The GSL304 is a versatile 1x Active EMI management IC designed to provide system wide reduction of Electromagnetic Interference (EMI) and Radio Freque.

GSL304 Features

* FCC approved method of EMI attenuation
* Generates a 1X low EMI Phase Modulated replication of the input signal
* Input / Output frequency (Vdd 1.65V-3.6V 10MHz to 50MHz)
* Multiple Deviation Selections
* Power save mode
* Operating Temperature : 0ºC

GSL304 Applications

* Mobile applications
* MIDs
* Netbooks
* others where power and space are of key importance GSL304 www. gs-power. com 1 Packages & Pin Assignments DFN2x2-8L (Top View) Pin No 1 2 3 4 5 6 7 8 Pin Name XIN XOUT PDB VSS MODOUT SS0 SS1 VDD Type I O I P O I I O Funct

📥 Download Datasheet

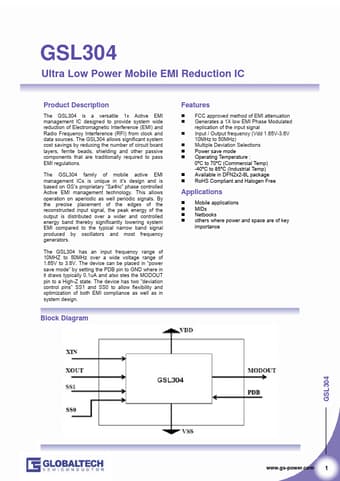

Preview of GSL304 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GSL304
Manufacturer
Globaltech
File Size
353.97 KB
Datasheet
GSL304-Globaltech.pdf
Description
Ultra Low Power Mobile EMI Reduction IC
