GS9122 - Precision Load Switch

Description

The GS9122 is a load switch which provides full protection to systems and loads which may encounter large current conditions.

GS9122 offers a 95mΩ current-limited switch which can operate over an input voltage range of 2.5-5.5V.

Features

  • thermal shutdown protection which shuts off the switch to prevent damage to the part when a continuous over-current condition causes excessive heating. When the switch current reaches the current limit, the parts operate in a constant-current mode to prohibit excessive currents from causing damage. The GS9122 will not turn off after a current limit.

📥 Download Datasheet

Datasheet Details

Part number GS9122
Manufacturer Globaltech
File Size 569.04 KB
Description Precision Load Switch
Datasheet download datasheet GS9122 Datasheet

📁 Similar Datasheet

  • GS9000 - Serial Digital Decoder (Gennum)
  • GS9000C - Serial Digital Decoder (Gennum)
  • GS9000D - Serial Digital Decoder (Gennum)
  • GS9001 - EDH Coprocessor (Gennum)
  • GS9007 - Quad Serial Digital Cable Driver (Gennum)
  • GS9008 - Cable Driver (Gennum)
  • GS9008A - Cable Driver (Gennum)
  • GS9009 - Cable Driver (Gennum)
  • GS9010A - Automatic Tuning Subsystem (Gennum)
  • GS9015 - Small Signal Transistors (Vishay)
Other Datasheets by Globaltech
  • GS9121 - 1.0A/2.0A High-Side Power Switch
  • GS9020 - 2A Sink/Source Bus Termination Regulator

Full PDF Text Transcription

Click to expand full text

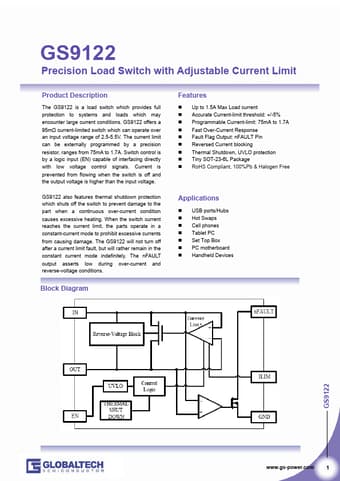

GS9122 Precision Load Switch with Adjustable Current Limit Product Description The GS9122 is a load switch which provides full protection to systems and loads which may encounter large current conditions. GS9122 offers a 95mΩ current-limited switch which can operate over an input voltage range of 2.5-5.5V. The current limit can be externally programmed by a precision resistor, ranges from 75mA to 1.7A. Switch control is by a logic input (EN) capable of interfacing directly with low voltage control signals. Current is prevented from flowing when the switch is off and the output voltage is higher than the input voltage. GS9122 also features thermal shutdown protection which shuts off the switch to prevent damage to the part when a continuous over-current condition causes excessive heating.
