GS4558 - Dual Wide Bandwidth Operational Amplifier

Description

The GS4558 device is dual general-purpose operational amplifier with each half electrically similar to the µA741 except that offset null capability is not provided.

The high common-mode input voltage range and the absence of latch-up make this amplifier ideal for voltage-follower applications.

Features

  • Continuous-Short-Circuit Protection.
  • Wide Common-Mode and Differential Voltage Ranges.
  • No Frequency Compensation Required.
  • Low Power Consumption.
  • No Latch-Up.
  • Unity-Gain Bandwidth: 3 MHz Typ.
  • Gain and Phase Match Between Amplifiers.
  • Low Noise: 8 nV . (TYP at 1 kHz) Packages & Pin Assignments OUTPUT A 1 8 VCC+ -IN A 2 +IN A 3 + - A VCC- 4 7 OUTPUT B 6 -IN B B- 5 +IN B TOP VIEW + GS4558 www. gs-po.

📥 Download Datasheet

Datasheet Details

Part number GS4558
Manufacturer Globaltech
File Size 824.26 KB
Description Dual Wide Bandwidth Operational Amplifier
Datasheet download datasheet GS4558 Datasheet

📁 Similar Datasheet

  • GS4576C09GL - 576Mb CIO Low Latency DRAM (GSI Technology)
  • GS4576C09GM - 576Mb CIO Low Latency DRAM (GSI Technology)
  • GS4576C09L - 576Mb CIO Low Latency DRAM (GSI Technology)
  • GS4576C18GL - 576Mb CIO Low Latency DRAM (GSI Technology)
  • GS4576C18GM - 576Mb CIO Low Latency DRAM (GSI Technology)
  • GS4576C18L - 576Mb CIO Low Latency DRAM (GSI Technology)
  • GS4576C36GL - 576Mb CIO Low Latency DRAM (GSI Technology)
  • GS4576C36GM - 576Mb CIO Low Latency DRAM (GSI Technology)
  • GS4576C36L - 576Mb CIO Low Latency DRAM (GSI Technology)
  • GS4580 - DUAL LOW NOISE OPERATIONAL AMPLIFIERS (GAINSIL)
Other Datasheets by Globaltech
  • GS431 - Adjustable Precision Shunt Regulators
  • GS432 - Adjustable Precision Shunt Regulators
  • GS432JWF - Adjustable Precision Shunt Regulators
  • GS432JZF - Adjustable Precision Shunt Regulators
  • GS432LF - Adjustable Precision Shunt Regulators
  • GS432SF - Adjustable Precision Shunt Regulators
  • GS432WF - Adjustable Precision Shunt Regulators
  • GS432YF - Adjustable Precision Shunt Regulators

Full PDF Text Transcription

Click to expand full text

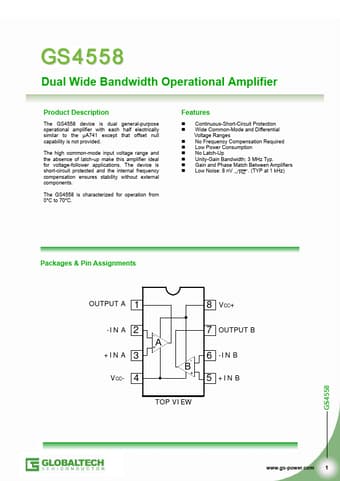

Dual Wide Bandwidth Operational Amplifier Product Description The GS4558 device is dual general-purpose operational amplifier with each half electrically similar to the µA741 except that offset null capability is not provided. The high common-mode input voltage range and the absence of latch-up make this amplifier ideal for voltage-follower applications. The device is short-circuit protected and the internal frequency compensation ensures stability without external components. The GS4558 is characterized for operation from 0°C to 70°C. Features  Continuous-Short-Circuit Protection  Wide Common-Mode and Differential Voltage Ranges  No Frequency Compensation Required  Low Power Consumption  No Latch-Up  Unity-Gain Bandwidth: 3 MHz Typ.
