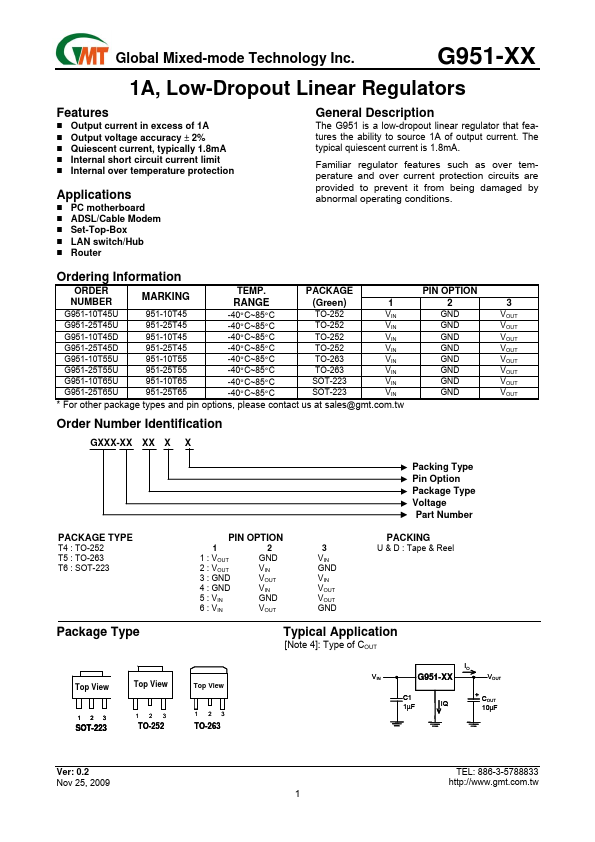

Global Mixed-mode Technology Inc.
G951-XX
1A, Low-Dropout Linear Regulators
Features
Output current in excess of 1A Output voltage accuracy ±2% Quiescent current, typically 1.8mA Internal short circuit current limit Internal over temperature protection
Applications
PC motherboard ADSL/Cable Modem Set-Top-Box LAN switch/Hub Router
General Description
The G951 is a low-dropout linear regulator that features the ability to source 1A of output current. The typical quiescent current is 1.8mA.
Familiar regulator features such as over temperature and over current protection circuits are provided to prevent it from being damaged by abnormal operating conditions.
Ordering Information
ORDER NUMBER
MARKING
TEMP.
G951-10T45D Datasheet
