G1401 Stereo Headphone Power Amplifier

The G1401 is a stereo audio power amplifier housed in a 8-pin SOP package capable of delivering 135mW of continuous power per channel into 16Ω loads. Amplifier gain is externally configured by means of two resistors per input channel. The G1401 is a dual channel, low voltage, low power, performance .

G1401 Features

* Class AB amplifier

* High performance

* High signal-to-noise ratio

* Low distortion

* Low power consumption

* Large output voltage swing

* Excellent power supply ripple rejection

* 3.0V to 7.0V supply voltage range

* Surface-M

G1401_GlobalMixed-modeTechnology.pdf

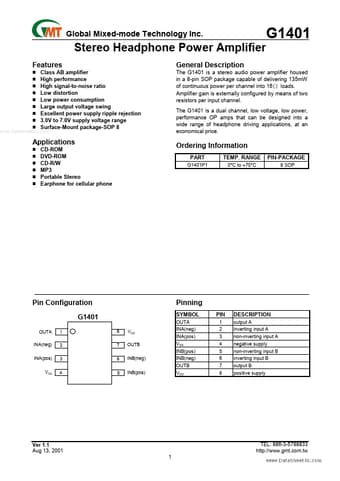

G1401 Datasheet Preview — This datasheet PDF includes multiple part numbers: G1401, G1401_GlobalMixed. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

G1401, G1401_GlobalMixed

Manufacturer:

Global Mixed-mode Technology

File Size:

245.82 KB

Description:

Stereo headphone power amplifier.

Note:

This datasheet PDF includes multiple part numbers: G1401, G1401_GlobalMixed.
Please refer to the document for exact specifications by model.
