G1084-15T43U - 5A Low-Dropout Linear Regulator

This page provides the datasheet information for the G1084-15T43U, a member of the G1084-15T43U-GlobalMixed 5A Low-Dropout Linear Regulator family.

Datasheet Summary

Description

The G1084-XX is a low dropout linear regulator with a dropout of 1.3V at 5A of load current.

It is available in three fixed voltages: 1.5V, 1.8V, 2.5V and 3.3V.

Refer to the G1084 for the adjustable version.

Features

  • Available in 1.5V, 1.8V, 2.5V, 3.3V version.
  • TO-252,TO-263 and TO-263T package.
  • Internal short circuit current limiting.
  • Internal over temperature protection.
  • Output current 5A.

📥 Download Datasheet

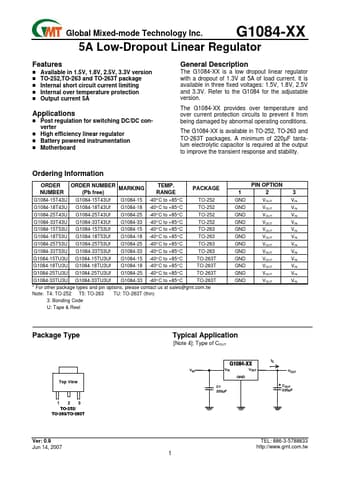

Datasheet preview – G1084-15T43U

Datasheet Details

Part number G1084-15T43U
Manufacturer Global Mixed-mode Technology
File Size 337.84 KB
Description 5A Low-Dropout Linear Regulator
Datasheet download datasheet G1084-15T43U Datasheet
Additional preview pages of the G1084-15T43U datasheet.

📁 Similar Datasheet

  • G108-1K - Voltage Stabiliser (STC)
  • G1000LL250 - Anode-Shorted Gate Turn-Off Thyristor (IXYS)
  • G1000LM250 - Anode-Shorted Gate Turn-Off Thyristor (IXYS)
  • G1000NC450 - Anode Shorted Gate Turn-Off Thyristor (IXYS)
  • G1000NL450 - Anode Shorted Gate Turn-Off Thyristor (IXYS)
  • G1000QC250 - Anode Shorted Gate Turn-Off Thyristor (IXYS)
  • G1000QC400 - Anode Shorted Gate Turn-Off Thyristor (IXYS)
  • G1000QC450 - Anode Shorted Gate Turn-Off Thyristor (IXYS)
  • G1002 - N-Channel Enhancement Mode Power MOSFET (GOFORD)
  • G1003A - N-Channel Enhancement Mode Power MOSFET (GFD)
Other Datasheets by Global Mixed-mode Technology

Full PDF Text Transcription

Click to expand full text
Global Mixed-mode Technology Inc. G1084-XX 5A Low-Dropout Linear Regulator Features „ Available in 1.5V, 1.8V, 2.5V, 3.3V version „ TO-252,TO-263 and TO-263T package „ Internal short circuit current limiting „ Internal over temperature protection „ Output current 5A Applications „ Post regulation for switching DC/DC converter „ High efficiency linear regulator „ Battery powered instrumentation „ Motherboard General Description The G1084-XX is a low dropout linear regulator with a dropout of 1.3V at 5A of load current. It is available in three fixed voltages: 1.5V, 1.8V, 2.5V and 3.3V. Refer to the G1084 for the adjustable version. The G1084-XX provides over temperature and over current protection circuits to prevent it from being damaged by abnormal operating conditions.
