ANA618 - Solar lawn Controller

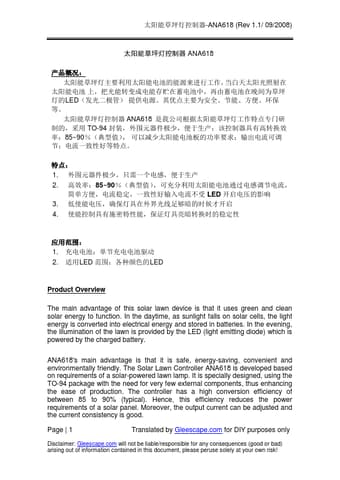

ANA618 Datasheet Preview — Preview of ANA618 PDF

Datasheet Details

Part number	ANA618
Manufacturer	Gleescape
File Size	127.35 KB
Description	Solar lawn Controller
Datasheet	ANA618-Gleescape.pdf

ANA618 Product details

Description

TOP VIEW Pin Number Pin Name 1 GND 2 CE 3 LX 4 VDD Pin Function Ground Pin Enable Switch Pin Input Power Page | 2 Translated by Gleescape.com for DIY purposes only Disclaimer: Gleescape.com will not be liable/responsible for any consequences (good or bad) arising out of information contained in this document, please peruse solely at your own risk! -ANA618 (Rev 1.1/ 09/2008) Circuit of Typical Application Using Solar Panel for Control Using Photo Resistor for Control Compon

Features

1. Minimal external components, use of only one inductor and ease of production 2. High efficiency: 85 to 90% (typical), can take advantage of solar energy from the sun. The current is adjustable using the inductor, it is simple and convenient, with good current stability & consistency. The voltage of the input electricity is not affected by the turning on of the LED. 3. Low activating voltage, ensuring that the LED will only turn on when the external environment is sufficiently dark. 4. LED act.
