GL6251 - 250mA ULTRA - LOW DROPOUT POSITIVE VOLTAGE REGULATOR

The GL6251 by Gleam is a 250mA ULTRA - LOW DROPOUT POSITIVE VOLTAGE REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

GL6251 250mA ULTRA - LOW DROPOUT POSITIVE VOLTAGE REGULATOR by Gleam - Datasheet Preview — Official preview page of the **GL6251** 250mA ULTRA - LOW DROPOUT POSITIVE VOLTAGE REGULATOR datasheet (Gleam).

Datasheet Details

Part number	GL6251
Manufacturer	Gleam
File Size	113.42 KB
Description	250mA ULTRA - LOW DROPOUT POSITIVE VOLTAGE REGULATOR
Datasheet	GL6251-Gleam.pdf

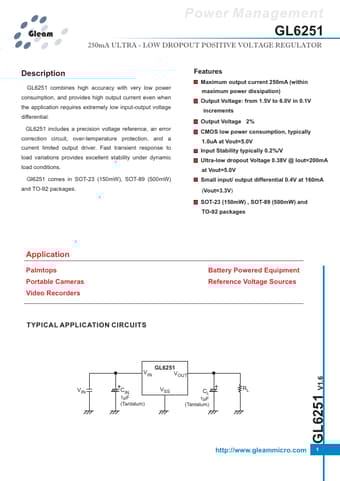

Additional preview pages of the GL6251 datasheet.

GL6251 Product details

Description

GL6251 combines high accuracy with very low power consumption, and provides high output current even when the application requires extremely low input-output voltage differential.

Features

Maximum output current 250mA (within maximum power dissipation) Output Voltage: from 1.5V to 6.0V in 0.1V increments Output Voltage ± 2% CMOS low power consumption, typically 1.0uA at Vout=5.0V Input Stability typically 0.2%/V Ultra-low dropout Voltage 0.38V @ Iout=200mA at Vout=5.0V Small input/ output differential 0.4V at 160mA (Vout=3.3V) SOT-23 (150mW) , SOT-89 (500mW) and TO-92 packages Appl.
