GL5010 - 100mA 100KHz DC-DC CONVERTOR BOOST REGULATOR

Description

The GL5010 Series are VFM (Chopper) Step-up DC/DC converter IC with ultra low supply current by CMOS process.

Features

  • Small Number of External Components ±2.5% Output Voltage Accuracy Low Ripple and Low Noise Max. 0.9V Start-up Voltage The GL5010 IC consists of an oscillator, a VFM control (When the output current is 1 mA) circuit, a driver transistor (Lx switch), a reference voltage Typ. 80% Efficiency unit, an error amplifier, resistors for voltage detection, and Low Input Current (Typ. 10μA) at no load, an Lx switch protection circuit. A low ripple, high efficiency with 1.5V input) step-up DC/DC con.

📥 Download Datasheet

Datasheet Details

Part number GL5010
Manufacturer Gleam
File Size 69.59 KB
Description 100mA 100KHz DC-DC CONVERTOR BOOST REGULATOR
Datasheet download datasheet GL5010 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GL513 TO-18 Type Infrared Emitting Diode Sharp Electrionic Components
GL513F TO-18 Type Infrared Emitting Diode Sharp Electrionic Components
GL514 TO-18 Type Infrared Emitting Diode Sharp Electrionic Components
GL520SM Microprocessor System Hardware Monitor GENESYS LOGIC
GL527 5MM RESIN MOLD TYPE INFRARED LIGHT EMITTING DIODE Sharp Electrionic Components

Other Datasheets by Gleam

Part Number Description
GL5050 500mA 500KHz DC-DC CONVERTOR BOOST REGULATOR
GL5171 1.5A 280kHz DC-DC CONVERTOR BOOST REGULATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

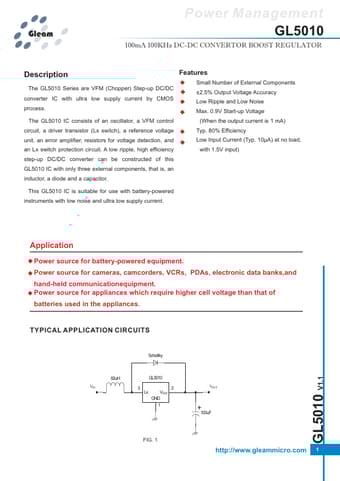

Gleam Power Management GL5010 100mA 100KHz DC-DC CONVERTOR BOPoOwSeTr MRaEnGagUeLmAenTtOR Description The GL5010 Series are VFM (Chopper) Step-up DC/DC converter IC with ultra low supply current by CMOS process. Features Small Number of External Components ±2.5% Output Voltage Accuracy Low Ripple and Low Noise Max. 0.9V Start-up Voltage The GL5010 IC consists of an oscillator, a VFM control (When the output current is 1 mA) circuit, a driver transistor (Lx switch), a reference voltage Typ. 80% Efficiency unit, an error amplifier, resistors for voltage detection, and Low Input Current (Typ. 10μA) at no load, an Lx switch protection circuit. A low ripple, high efficiency with 1.
