GL2596 - 3A STEP-DOWN VOLTAGE REGULATOR

The GL2596 by Gleam is a 3A STEP-DOWN VOLTAGE REGULATOR. Below is the official datasheet preview.

Datasheet Details

Part number	GL2596
Manufacturer	Gleam
File Size	121.71 KB
Description	3A STEP-DOWN VOLTAGE REGULATOR
Datasheet	GL2596-Gleam.pdf

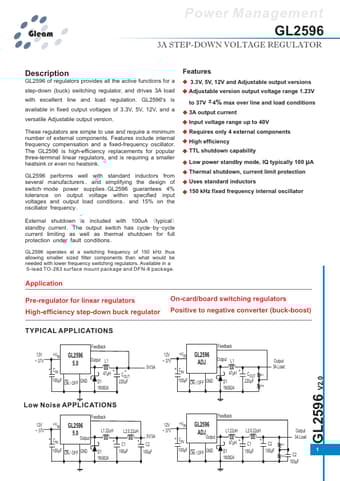

Additional preview pages of the GL2596 datasheet.

GL2596 Product details

Description

GL2596 of regulators provides all the active functions for a step-down (buck) switching regulator, and drives 3A load with excellent line and load regulation.GL2596's is available in fixed output voltages of 3.3V, 5V, 12V, and a versatile Adjustable output version.These regulators are simple to use and require a minimum number of external components.

Features

include internal frequency compensation and a fixed-frequency oscillator. The GL2596 is high-efficiency replacements for popular three-terminal linear regulators, and is requiring a smaller heatsink or even no heatsink. GL2596 performs well with standard inductors from several manufacturers, and simplifying the design of switch-mode power supplies. GL2596 guarantees 4% tolerance on output voltage within specified input voltages and output load conditions, and 15% on the oscillator frequency. Fea.
