NAS1006 - Bolts

Download the NAS1006 datasheet PDF. This datasheet also covers the NAS1003 variant, as both devices belong to the same bolts family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NAS1003-GenuineAircraftHardware.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NAS1006
Manufacturer Genuine Aircraft Hardware
File Size 140.21 KB
Description Bolts
Datasheet download datasheet NAS1006 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NAS1096 MACHINE SCREW Aircraft
NAS1096 Screw - Hex Head NAS
NAS1097 National Aerospace Standards Committee ETC
NAS1097B5-32 SOLID RIVET Military-Fasteners
NAS1100-02-4 SCREW Military Fasteners

Other Datasheets by Genuine Aircraft Hardware

Part Number Description
NAS1003 Bolts
NAS1004 Bolts
NAS1005 Bolts
NAS1007 Bolts
NAS1008 Bolts

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

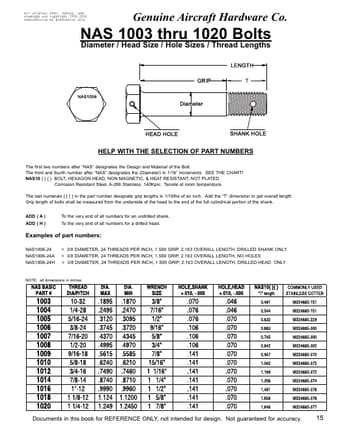

All original Text, Tables, and Drawings are Copyright 1994-2006 reproduction by permission only. Genuine Aircraft Hardware Co. NAS 1003 thru 1020 Bolts Diameter / Head Size / Hole Sizes / Thread Lengths HELP WITH THE SELECTION OF PART NUMBERS The first two numbers after “NAS” designates the Design and Material of the Bolt. The third and fourth number after “NAS” designates the (Diameter) in 1/16” increments. SEE THE CHART! NAS10 { } { } BOLT, HEXAGON HEAD, NON MAGNETIC, & HEAT RESISTANT, NOT PLATED Corrosion Resistant Steel, A-286 Stainless, 140Kpsi. Tensile at room temperature. The last numerals { } { } in the part number designate grip lengths in 1/16ths of an inch. Add the “T” dimension to get overall length.
