GS1540 - HDTV Serial Digital Non-Equalizing Receiver

Description

The GS1540 is a high performance integrated Receiver designed for HDTV component signals, conforming to the SMPTE 292M standard.

The GS1540 includes adjustment free clock and data recovery, and 1:20 serial to parallel conversion.

Features

  • SMPTE 292M compliant.
  • 1.485 and 1.485/1.001Gb/s operation.
  • integrated adjustment-free reclocker.
  • 1:20 serial to parallel conversion.
  • selectable reclocked serial output.
  • reclocker BYPASS capability.
  • LOCK detect.
  • input jitter indicator (IJI).
  • 20 bit output.
  • 74.25MHz or 74.25/1.001MHz clock output.
  • single +5.0V power supply.
  • minimal component count for HD SDI receive solutions.

📥 Download Datasheet

Datasheet Details

Part number GS1540
Manufacturer Gennum Corporation
File Size 198.71 KB
Description HDTV Serial Digital Non-Equalizing Receiver
Datasheet download datasheet GS1540 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GS1503B HD Embedded Audio CODEC GENNUM
GS1504 HDTV Adaptive Equalizer ETC
GS1508 HDTV Cable Driver ETC
GS1508-CKA HDTV Cable Driver ETC
GS1508-CTA HDTV Cable Driver ETC

Other Datasheets by Gennum Corporation

Part Number Description
GS1545 HDTV Serial Digital Equalizing Receiver
GS1500 HDTV Serial Digital Deformatter
GS1501 HDTV Serial Digital Formatter
GS1503 HD EMBEDDED AUDIO CODEC
GS1510 HDTV Serial Digital Deformatter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

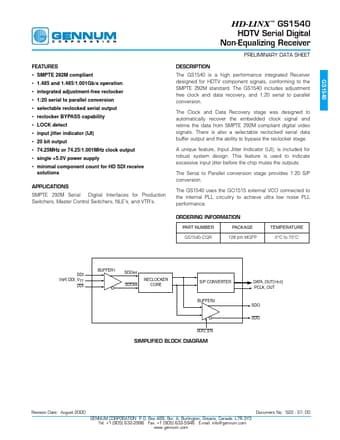

www.DataSheet4U.com HD-LINX ™ GS1540 HDTV Serial Digital Non-Equalizing Receiver PRELIMINARY DATA SHEET FEATURES • SMPTE 292M compliant • 1.485 and 1.485/1.001Gb/s operation • integrated adjustment-free reclocker • 1:20 serial to parallel conversion • selectable reclocked serial output • reclocker BYPASS capability • LOCK detect • input jitter indicator (IJI) • 20 bit output • 74.25MHz or 74.25/1.001MHz clock output • single +5.0V power supply • minimal component count for HD SDI receive solutions APPLICATIONS SMPTE 292M Serial Digital Interfaces for Production Switchers, Master Control Switchers, NLE's, and VTR's. DESCRIPTION The GS1540 is a high performance integrated Receiver designed for HDTV component signals, conforming to the SMPTE 292M standard.
