MMSZ5225 - ZENER DIODES

Name: MMSZ5225
SKU: MMSZ5225-458125

General

The MMSZ5225 by General is a ZENER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	MMSZ5225
Manufacturer	General
File Size	41.36 KB
Description	ZENER DIODES
Datasheet	MMSZ5225_GeneralSemiconductor.pdf

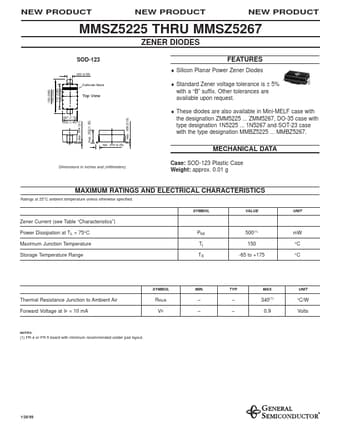

Additional preview pages of the MMSZ5225 datasheet.

Silicon Planar Power Zener Diodes.
Standard Zener voltage tolerance is ± 5% with a “B” suffix. Other tolerances are available upon request.
These diodes are also available in Mini-MELF case with the designation ZMM5225 ZMM5267, DO-35 case with type designation 1N5225 1N5267 and SOT-23 case with the type designation MMBZ5225 MMBZ5267. Cathode Mark .152 (3.85) .140 (3.55) .112 (2.85) .100 (2.55) Top View max. .004 (0.1) max. .053 (1.35) min. .010 (0.25) max.
