2KBP005M - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Name: 2KBP005M
SKU: 2KBP005M-490062

General

The 2KBP005M by General is a GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	2KBP005M
Manufacturer	General
File Size	79.02 KB
Description	GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Datasheet	2KBP005M_GeneralSemiconductor.pdf

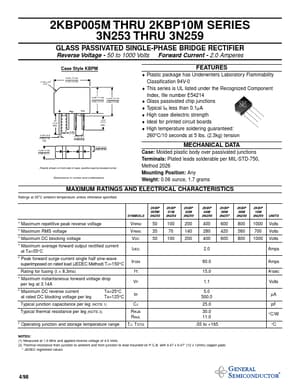

Additional preview pages of the 2KBP005M datasheet.

0.460 (11.68) 0.420 (10.67) 0.500 (12.70) 0.460 (11.68) 60 (15.2) MIN. 0.060 (1.52) 0.160 (4.1) 0.140 (3.6) 0.50 (12.7) MIN. 0.034 (8.6) 0.028 (7.6) DIA.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
This series is UL listed under the Recognized Component Index, file number E54214.
Glass passivated chip junctions.
Typical IR less than 0.1µA.
High case dielectric strength.
Ideal for printed circuit board.
