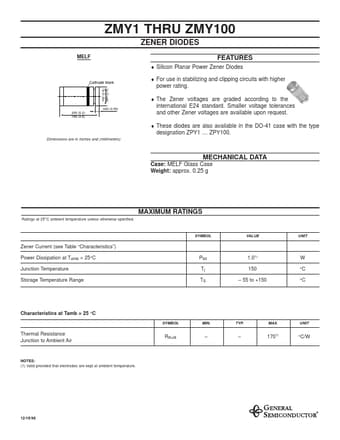

ZMY100 - ZENER DIODES

General Semiconductor

Datasheet Details

Part number	ZMY100
Manufacturer	General Semiconductor
File Size	205.06 KB
Description	ZENER DIODES
Datasheet	ZMY100_GeneralSemiconductor.pdf

Silicon Planar Power Zener Diodes.
For use in stabilizing and clipping circuits with higher power rating.
The Zener voltages are graded according to the international E24 standard. Smaller voltage tolerances and other Zener voltages are available upon request.
These diodes are also available in the DO-41 case with the type designation ZPY1 … ZPY100. Cathode Mark .102 (2.6) .094 (2.4) .022 (0.55) .205 (5.2) .189 (4.8) Dimensions are in inches and (millimet.
