ZMM5242 ZENER DIODES

ZMM5242 Description

ZMM5225 THRU ZMM5267 ZENER DIODES Mini-MELF .

ZMM5242 Features

* Silicon Planar Power Zener Diodes
* Standard Zener voltage tolerance is ± 5% with a “B” suffix. Other tolerances are available upon request.
* These diodes are also available in the DO-35 case with the type designation 1N5225 … 1N5267, SOT-23 case with the type designation

📥 Download Datasheet

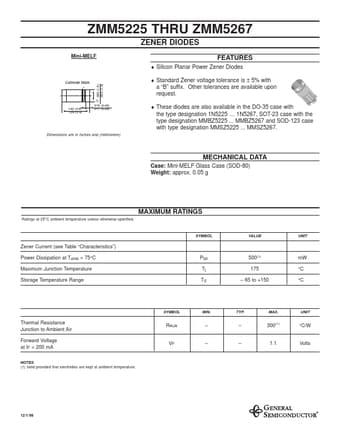

Preview of ZMM5242 PDF
datasheet Preview Page 2 datasheet Preview Page 3
