MPG06B

The MPG06B is MINIATURE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER designed by General Semiconductor.

Product Overview

General Semiconductor

📥 Download Datasheet

MPG06B MINIATURE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER by General Semiconductor - Datasheet Preview — Datasheet preview – MPG06B

Datasheet Details

Part number	MPG06B, MPG06A
Manufacturer	General Semiconductor
File Size	78.48 KB
Description	MINIATURE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER
Datasheet	MPG06A_GeneralSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MPG06B, MPG06A. Please refer to the document for exact specifications by model.

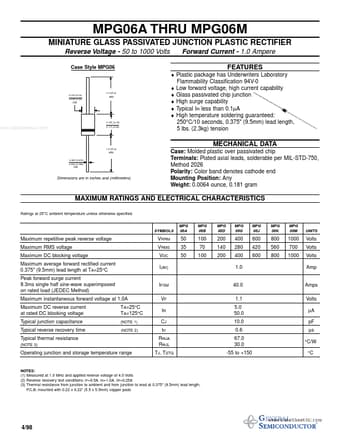

Additional preview pages of the MPG06B datasheet.

Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Low forward voltage, high current capability.
Glass passivated chip junction.
High surge capability.
Typical IR less than 0.1µA.
High temperature soldering guaranteed: 250°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension 0.100 (2.54) 0.090 (2.29) DIA 1.0 (25.4) MIN. 0.125 (3.18) www. DataSheet4U. com 0.115 (2.92).
