GBL01 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Key Features

  • 0.421 (10.7) 0.411 (10.4) 0.080 (2.03) 0.060 (1.50) 0.095 (2.41) 0.080 (2.03) 0.098 (2.5) 0.075 (1.9) 0.050 (1.27) 0.040 (1.02) 0.210 (5.3) 0.190 (4.8) 0.040 (1.02) 0.030 (0.76) 0.022 (0.56) 0.018 (0.46) 0.098 (2.5) 0.075 (1.9) 0.718 (18.2) 0.682 (17.3) Lead Depth 0.022 (0.56) 0.018 (0.46).
  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • This series is UL listed under the Recognized Component Index, file number E54214.
  • Glass passivat.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBL01 Glass Passivated Chip Single-phase Bridge Rectifier First Silicon
GBL01 Single Phase Glass Passivated Silicon Bridge Rectifier GeneSiC
GBL01 Glass Passivated Single Phase Bridge Rectifiers JGD
GBL01 Silicon Bridge Rectifiers GME
GBL01 IN-LINE GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER UPM

Other Datasheets by General Semiconductor (now Vishay)

Part Number Description
GBL005 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBL02 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBL04 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBL06 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBL08 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

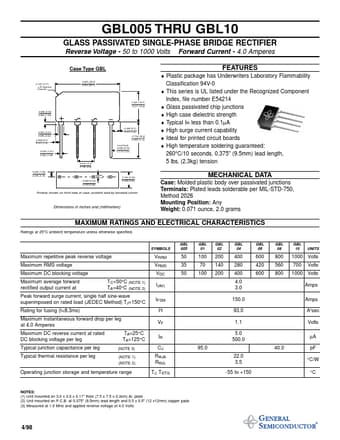

GBL005 THRU GBL10 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Reverse Voltage - 50 to 1000 Volts Case Type GBL 0.125 (3.17) x 45 degrees Chamfer 0.825 (20.9) 0.815 (20.7) Forward Current - 4.0 Amperes FEATURES 0.421 (10.7) 0.411 (10.4) 0.080 (2.03) 0.060 (1.50) 0.095 (2.41) 0.080 (2.03) 0.098 (2.5) 0.075 (1.9) 0.050 (1.27) 0.040 (1.02) 0.210 (5.3) 0.190 (4.8) 0.040 (1.02) 0.030 (0.76) 0.022 (0.56) 0.018 (0.46) 0.098 (2.5) 0.075 (1.9) 0.718 (18.2) 0.682 (17.3) Lead Depth 0.022 (0.56) 0.018 (0.46) ♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ♦ This series is UL listed under the Recognized Component Index, file number E54214 ♦ Glass passivated chip junctions ♦ High case dielectric strength ♦ Typical IR less than 0.
