BZW04-26 - TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR

Product Overview

General Semiconductor

📥 Download Datasheet

BZW04-26 TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR by General Semiconductor - Datasheet Preview — Datasheet preview – BZW04-26

Datasheet Details

Part number	BZW04-26
Manufacturer	General Semiconductor
File Size	55.60 KB
Description	TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	BZW04-26 Datasheet

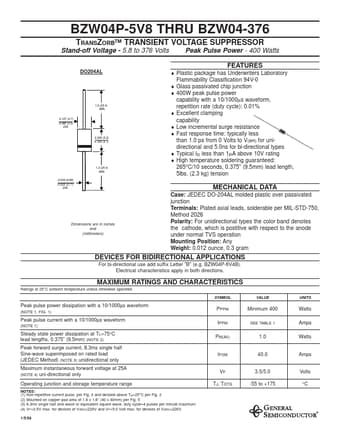

Additional preview pages of the BZW04-26 datasheet.

Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated chip junction.
400W peak pulse power capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01%.
Excellent clamping capability.
Low incremental surge resistance.
Fast response time: typically less than 1.0 ps from 0 Volts to V(BR) for unidirectional and 5.0ns for bi-directional types.
Typical ID less than 1µA above 10V rati.
