BAS16D SMALL SIGNAL DIODES

BAS16D Description

NEW PRODUCT NEW PRODUCT NEW PRODUCT BAS16D, BAS16WS SMALL SIGNAL DIODES .022 (0.55) Cathode Mark Top View SOD-123 (BAS16D) .

BAS16D Features

* Silicon Epitaxial Planar Diode
* Fast switching diode.
* Also available in case SOT-23 with designation BAS16. .152 (3.85) .140 (3.55) .112 (2.85) .100 (2.55) max. .004 (0.1) max. .053 (1.35) max. .006 (0.15) .067 (1.70) .055 (1.40) min. .010 (0.25) .012 (0.3) Cathode M

📥 Download Datasheet

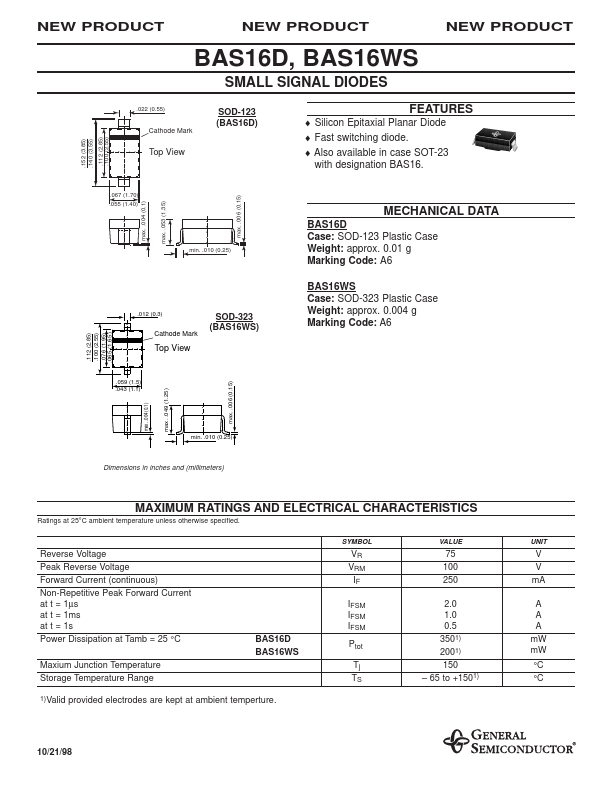

Preview of BAS16D PDF

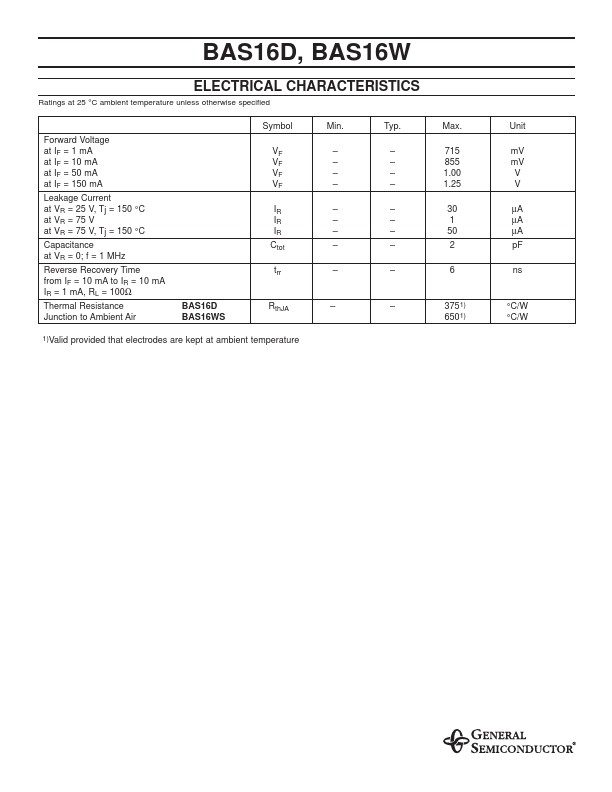

datasheet Preview Page 2

Datasheet Details

Part number
BAS16D
Manufacturer
General Semiconductor
File Size
51.18 KB
Datasheet
BAS16D-GeneralSemiconductor.pdf
Description
SMALL SIGNAL DIODES
