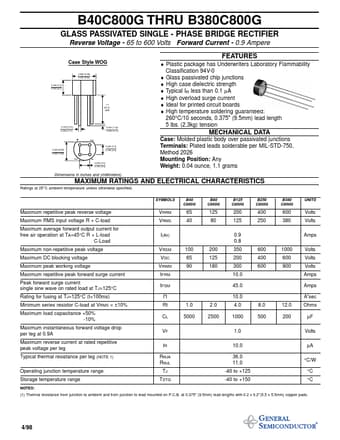

B40C800G - GLASS PASSIVATED SINGLE - PHASE BRIDGE RECTIFIER

General Semiconductor

Datasheet Details

Part number	B40C800G
Manufacturer	General Semiconductor
File Size	124.33 KB
Description	GLASS PASSIVATED SINGLE - PHASE BRIDGE RECTIFIER
Datasheet	B40C800G_GeneralSemiconductor.pdf

Case Style WOG 0.388 (9.86) 0.348 (8.84) 0.220 (5.6) 0.160 (4.1) 1.0 (25.4) MIN. 0.032 (0.81) 0.028 (0.71) 0.060 (1.52) 0.020 (0.51).
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated chip junctions.
High case dielectric strength.
Typical IR less than 0.1 µA.
High overload surge current.
Ideal for printed circuit boards.
High temperature soldering guaranteed: 260°C/10 seconds, 0.375".
