5KP45 - TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR

Product Overview

General Semiconductor

📥 Download Datasheet

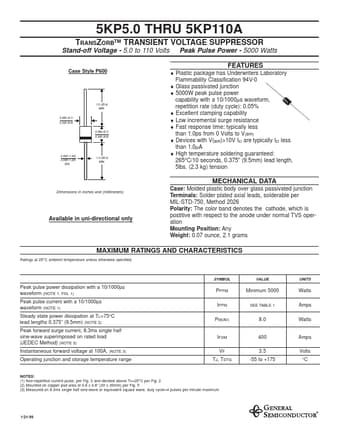

5KP45 TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR by General Semiconductor - Datasheet Preview — Datasheet preview – 5KP45

Datasheet Details

Part number	5KP45
Manufacturer	General Semiconductor
File Size	67.26 KB
Description	TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR
Datasheet	5KP45 Datasheet
Additional preview pages of the 5KP45 datasheet.

Product details

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
Glass passivated junction.
5000W peak pulse power capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.05%.
Excellent clamping capability.
Low incremental surge resistance.
Fast response time: typically less than 1.0ps from 0 Volts to V(BR).
Devices with V(BR)>10V ID are typically ID less than 1.0µA.
High temperature soldering gu.
