3N252 - GLASS PASSIVATED SINGLE-PHASE RECTIFIER BRIDGE

General Semiconductor

📥 Download Datasheet

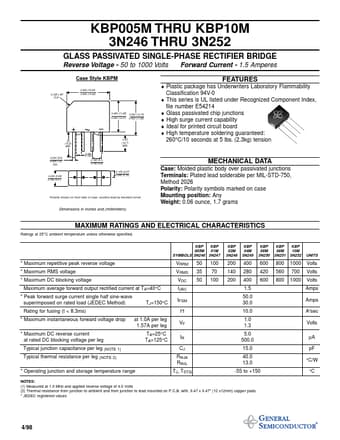

3N252 Datasheet Preview — Preview of 3N252 PDF

datasheet Preview Page 2

Datasheet Details

Part number	3N252
Manufacturer	General Semiconductor
File Size	79.02 KB
Description	GLASS PASSIVATED SINGLE-PHASE RECTIFIER BRIDGE
Datasheet	3N252_GeneralSemiconductor.pdf

3N252 Product details

Features

0.460 (11.68) 0.420 (10.67) 0.500 (12.70) 0.460 (11.68) 60 (15.2) MIN. 0.060 (1.52) 0.160 (4.1) 0.140 (3.6) 0.50 (12.7) MIN.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
This series is UL listed under Recognized Component Index, file number E54214.
Glass passivated chip junctions.
High surge current capability.
Ideal for printed circuit board.
High temperature soldering guaranteed: 260°C/10 seconds at 5.
