1N5059GP - GLASS PASSIVATED JUNCTION RECTIFIER

Name: 1N5059GP
SKU: 1N5059GP-119717

General Semiconductor

The 1N5059GP by General Semiconductor is a GLASS PASSIVATED JUNCTION RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	1N5059GP
Manufacturer	General Semiconductor
File Size	64.18 KB
Description	GLASS PASSIVATED JUNCTION RECTIFIER
Datasheet	1N5059GP_GeneralSemiconductor.pdf

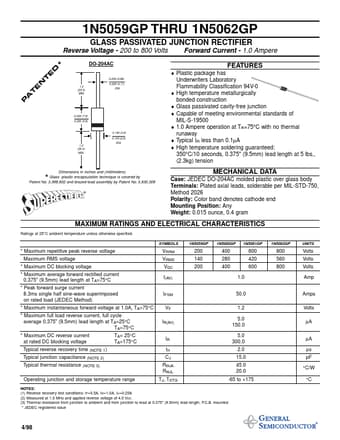

Additional preview pages of the 1N5059GP datasheet.

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature metallurgically bonded construction.
Glass passivated cavity-free junction.
Capable of meeting environmental standards of MIL-S-19500.
1.0 Ampere operation at TA=75°C with no thermal runaway.
Typical IR less than 0.1µA.
High temperature soldering guaranteed: 350°C/10 seconds, 0.375" (9.5mm) lead length at 5 lbs. , (2.3kg) tension P A T E.
