1N4747 - ZENER DIODES

Product Overview

General Semiconductor

Part number	1N4747
Manufacturer	General Semiconductor
File Size	79.01 KB
Description	ZENER DIODES
Datasheet	1N4747 Datasheet

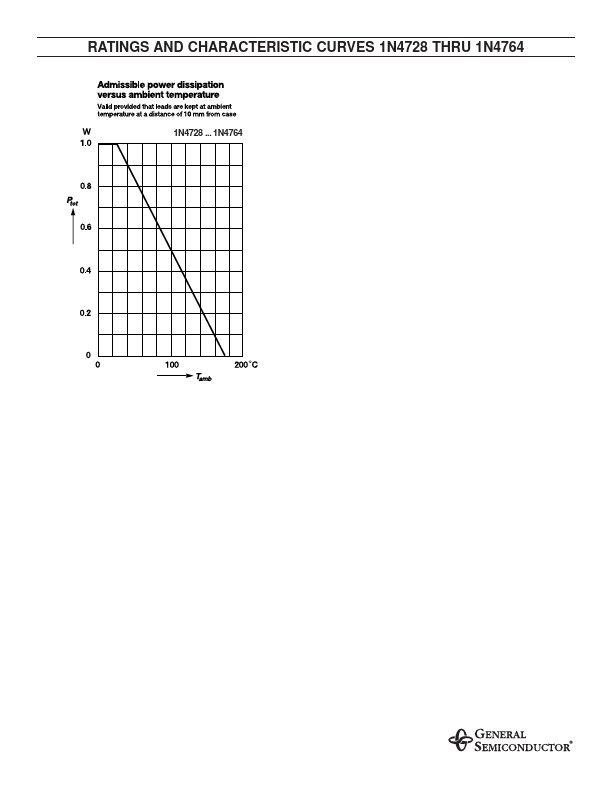

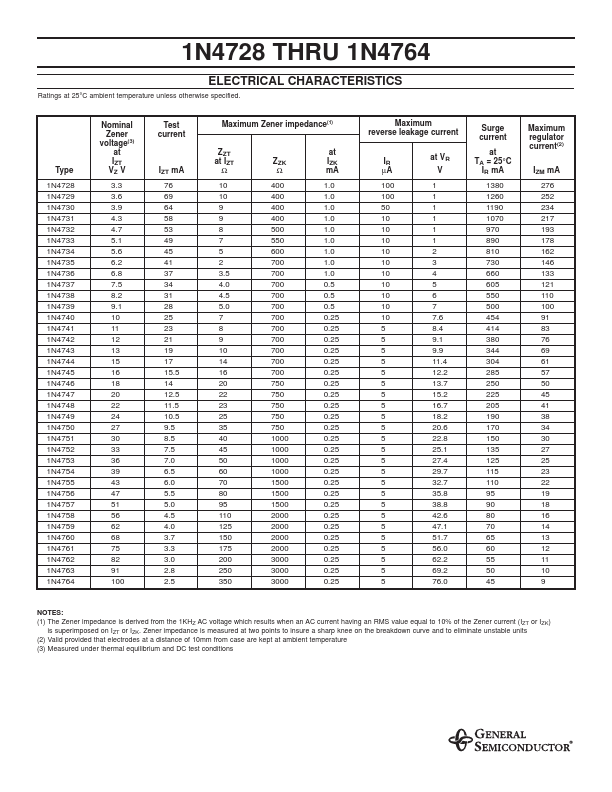

Additional preview pages of the 1N4747 datasheet.

DO-41 Glass.
Silicon Planar Power Zener Diodes.
For use in stabilizing and clipping circuits with high power rating.
Standard Zener voltage tolerance is ±10%. Add suffix “A” for ±5% tolerance. Other Zener voltages and tolerances are available upon request.
These diodes are also available in the MELF case with type designation ZM4728 thru ZM4764 max. .161 (4.1) min. 1.102 (28.0) max. ∅ 0.102 (2.6) Cathode Mark min. 1.102 (28.0) max. ∅ 0.034 (0.86) MECH.
