S85K - Silicon Standard Recovery Diode

S85K Description

Silicon Standard Recovery Diode .

S85K Features

* High Surge Capability
* Types from 800 V to 1200 V VRRM
* Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. S85K thru S85QR VRRM = 800 V - 1200 V IF = 85 A AC DO-5 Package CA Stud Stud (R) Maximum ra

📥 Download Datasheet

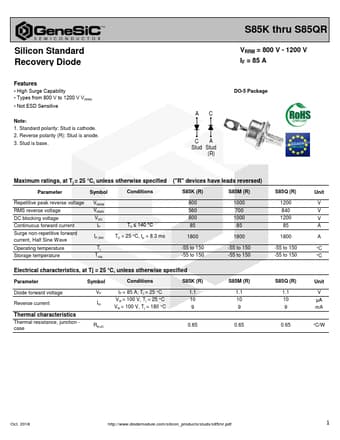

Preview of S85K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S85K
Manufacturer
GeneSiC
File Size
785.24 KB
Datasheet
S85K-GeneSiC.pdf
Description
Silicon Standard Recovery Diode
