S300Z, S300Y Silicon Standard Recovery Diode

S300Z Description

Silicon Standard Recovery Diode S300Y thru S300ZR VRRM = 1600 V - 2000 V IF =300 A .

S300Z Features

* High Surge Capability
* Types from 1600 V to 2000 V VRRM
* Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. AC CA Stud Stud (R) DO-9 Package Maximum ratings, at Tj = 25 °C, unless otherwise specified

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S300Z, S300Y. Please refer to the document for exact specifications by model.

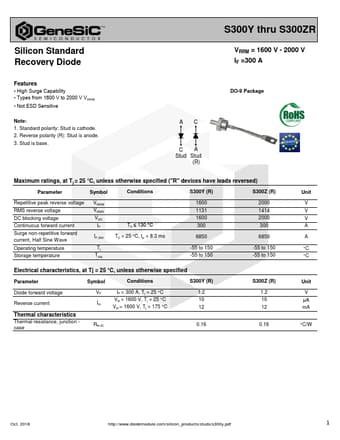

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S300Z, S300Y
Manufacturer
GeneSiC
File Size
744.66 KB
Datasheet
S300Y-GeneSiC.pdf
Description
Silicon Standard Recovery Diode
Note
This datasheet PDF includes multiple part numbers: S300Z, S300Y.
Please refer to the document for exact specifications by model.
