S150J Silicon Standard Recovery Diode

S150J Description

Silicon Standard Recovery Diode .

S150J Features

* High Surge Capability
* Types from 600 V to 1200 V VRRM
* Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. S150J thru S150QR VRRM = 600 V - 1200 V IF =150 A AC DO-8 Package CA Stud Stud (R) Maximum

📥 Download Datasheet

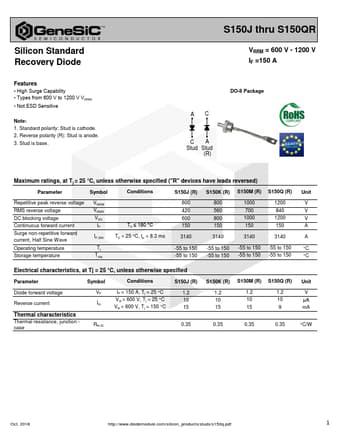

Preview of S150J PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S150J
Manufacturer
GeneSiC
File Size
762.99 KB
Datasheet
S150J-GeneSiC.pdf
Description
Silicon Standard Recovery Diode
