MUR7005 - Silicon Super Fast Recovery Diode

GeneSiC

📥 Download Datasheet

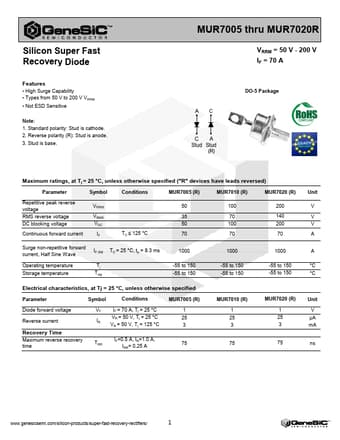

MUR7005 Datasheet Preview — Preview of MUR7005 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: MUR7005
Manufacturer: GeneSiC
File Size: 449.83 KB
Datasheet: MUR7005-GeneSiC.pdf
Description: Silicon Super Fast Recovery Diode

MUR7005 Product details

Features

High Surge Capability.
Types from 50 V to 200 V VRRM.
Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. MUR7005 thru MUR7020R VRRM = 50 V - 200 V IF = 70 A DO-5 Package Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions MUR7005 (R) MUR7010 (R) MUR7020 (R) Repetitive peak reverse voltage RMS reverse voltage DC blocking vol.
