MUR40060CT, MUR40040CT - Silicon Super Fast Recovery Diode

Name: MUR40060CT
SKU: MUR40060CT-956183

GeneSiC

The MUR40060CT by GeneSiC is a Silicon Super Fast Recovery Diode. Below is the official datasheet preview.

Datasheet Details

Part number	MUR40060CT, MUR40040CT
Manufacturer	GeneSiC
File Size	687.15 KB
Description	Silicon Super Fast Recovery Diode
Datasheet	MUR40040CT-GeneSiC.pdf
Note	This datasheet PDF includes multiple part numbers: MUR40060CT, MUR40040CT. Please refer to the document for exact specifications by model.

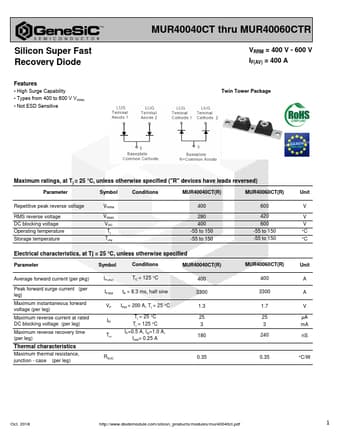

Additional preview pages of the MUR40060CT datasheet.

High Surge Capability.
Types up to 600 V VRRM MUR40040CT thru MUR40060CTR VRRM = 50 V - 600 V IF = 400 A Twin Tower Package Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions MUR40040CT (R) MUR40060CT (R) Repetitive peak reverse voltage RMS reverse voltage DC blocking voltage Continuous forward current VRRM VRMS VDC IF TC ≤ 125 °C 400 280 400 400 600 420 600 400 Surge non-repetitive forward curr.
