MBRF300150R, MBRF300150 - Silicon Power Schottky Diode

Name: MBRF300150R
SKU: MBRF300150R-972608

GeneSiC

The MBRF300150R by GeneSiC is a Silicon Power Schottky Diode. Below is the official datasheet preview.

Datasheet Details

Part number	MBRF300150R, MBRF300150
Manufacturer	GeneSiC
File Size	472.05 KB
Description	Silicon Power Schottky Diode
Datasheet	MBRF300150-GeneSiC.pdf
Note	This datasheet PDF includes multiple part numbers: MBRF300150R, MBRF300150. Please refer to the document for exact specifications by model.

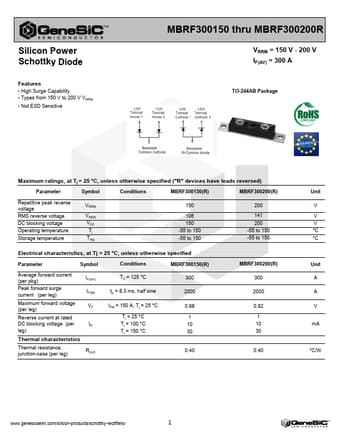

Additional preview pages of the MBRF300150R datasheet.

High Surge Capability.
Types from 150 V to 200 V VRRM.
Not ESD Sensitive MBRF300150 thru MBRF300200R VRRM = 150 V - 200 V IF(AV) = 300 A TO-244AB Package Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions MBRF300150(R) MBRF300200(R) Repetitive peak reverse voltage RMS reverse voltage DC blocking voltage Operating temperature Storage temperature VRRM VRMS VDC Tj Tstg 150 106 150 -55 to 150.
