MBRF20045 - Silicon Power Schottky Diode

Name: MBRF20045
SKU: MBRF20045-1354871

GeneSiC

The MBRF20045 by GeneSiC is a Silicon Power Schottky Diode. Below is the official datasheet preview.

Datasheet Details

Part number	MBRF20045
Manufacturer	GeneSiC
File Size	594.80 KB
Description	Silicon Power Schottky Diode
Datasheet	MBRF20045-GeneSiC.pdf

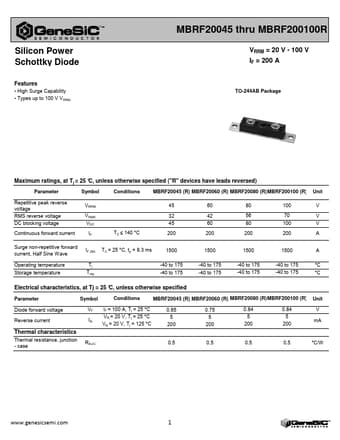

Additional preview pages of the MBRF20045 datasheet.

High Surge Capability.
Types up to 100 V VRRM MBRF20045 thru MBRF200100R VRRM = 20 V - 100 V IF = 200 A TO-244AB Package Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions MBRF20045 (R) MBRF20060 (R) MBRF20080 (R)MBRF200100 (R) Unit Repetitive peak reverse voltage RMS reverse voltage DC blocking voltage VRRM VRMS VDC 45 60 80 100 V 32 42 56 70 V 45 60 80 100 V Continuous forward current IF TC ≤ 1.
