1N8024-GA - High Temperature Silicon Carbide Power Schottky Diode

Features

  • 1200 V Schottky rectifier.
  • 250°C maximum operating temperature.
  • Electrically isolated base-plate.
  • Zero reverse recovery charge.
  • Superior surge current capability.
  • Positive temperature coefficient of VF.
  • Temperature independent switching behavior.
  • Lowest figure of merit QC/IF.
  • Available screened to Mil-PRF-19500 Package.
  • RoHS Compliant VRRM = 1200 V IF (Tc=25°C) = 2.5 A QC = 6 nC PIN 1 PIN 2 PIN 3 NC 123 TO.
  • 257 (Isolated Base-pl.

📥 Download Datasheet

Datasheet Details

Part number 1N8024-GA
Manufacturer GeneSiC
File Size 765.75 KB
Description High Temperature Silicon Carbide Power Schottky Diode
Datasheet download datasheet 1N8024-GA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N8020 HYPER FAST SOFT RECOVERY RECTIFIER SSDI
1N8021 HYPER FAST RECOVERY RECTIFIER SSDI
1N8022 HYPER FAST RECOVERY RECTIFIER SSDI
1N8023 HYPER FAST RECOVERY RECTIFIER SSDI
1N80 N-CHANNEL POWER MOSFET UTC

Other Datasheets by GeneSiC

Part Number Description
1N8033-GA High Temperature Silicon Carbide Power Schottky Diode
1N8034-GA High Temperature Silicon Carbide Power Schottky Diode

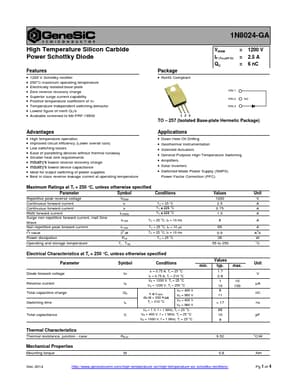

Full PDF Text Transcription

Click to expand full text
1N8024-GA High Temperature Silicon Carbide Power Schottky Diode Features  1200 V Schottky rectifier  250°C maximum operating temperature  Electrically isolated base-plate  Zero reverse recovery charge  Superior surge current capability  Positive temperature coefficient of VF  Temperature independent switching behavior  Lowest figure of merit QC/IF  Available screened to Mil-PRF-19500 Package  RoHS Compliant VRRM = 1200 V IF (Tc=25°C) = 2.
