1N1190R, 1N1188 - Silicon Standard Recovery Diode

Name: 1N1190R
SKU: 1N1190R-1386856

GeneSiC

The 1N1190R by GeneSiC is a Silicon Standard Recovery Diode. Below is the official datasheet preview.

Datasheet Details

Part number	1N1190R, 1N1188
Manufacturer	GeneSiC
File Size	763.25 KB
Description	Silicon Standard Recovery Diode
Datasheet	1N1188-GeneSiC.pdf
Note	This datasheet PDF includes multiple part numbers: 1N1190R, 1N1188. Please refer to the document for exact specifications by model.

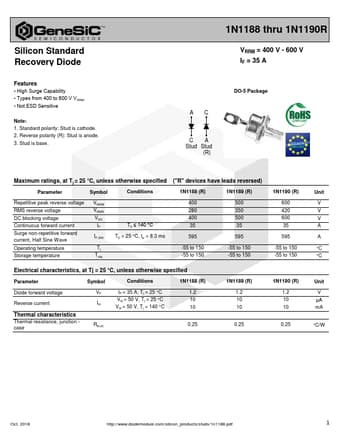

Additional preview pages of the 1N1190R datasheet.

High Surge Capability.
Types from 400 to 600 V VRRM.
Not ESD Sensitive Note: 1. Standard polarity: Stud is cathode. 2. Reverse polarity (R): Stud is anode. 3. Stud is base. 1N1188 thru 1N1190R VRRM = 400 V - 600 V IF = 35 A AC DO-5 Package CA Stud Stud (R) Maximum ratings, at Tj = 25 °C, unless otherwise specified ("R" devices have leads reversed) Parameter Symbol Conditions 1N1188 (R) 1N1189 (R) Repetitive peak reverse voltage RMS reverse voltage DC blocki.
