5KP13C - 5000 Watt Axial Lead TVS

Download the 5KP13C datasheet PDF (5KP5.0 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 5000 watt axial lead tvs.

Features

  • 5000 Watts Surge Capability at 1ms.
  • Excellent clamping capability.
  • Low zener impedance.
  • Fast response time: Typically less than 1.0ps from 0 volt to BV min.
  • Typical IR less than 1 A above 10V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5KP5.0-GW.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 5KP13C
Manufacturer GW
File Size 72.13 KB
Description 5000 Watt Axial Lead TVS
Datasheet download datasheet 5KP13C Datasheet

📁 Similar Datasheet

  • 5KP13C - Axial Lead Transient Voltage Suppressors (SOCAY)
  • 5KP13C - TVS (LITE-ON)
  • 5KP13C - Transient Voltage Suppressors (HITANO)
  • 5KP13C - TVS (MCC)
  • 5KP13C - Transient Voltage Suppressor Diodes (Diotec)
  • 5KP13C - 5000W TRANSIENT VOLTAGE SUPPRESSOR (WON-TOP)
  • 5KP13CA - Axial Lead Transient Voltage Suppressors (SOCAY)
  • 5KP13CA - TVS (LITE-ON)
  • 5KP13CA - TVS Diode (Littelfuse)
  • 5KP13CA - 5000W TRANSIENT VOLTAGE SUPPRESSOR (Diodes Incorporated)
Other Datasheets by GW
  • 5KP13CA - 5000 Watt Axial Lead TVS
  • 5KP13 - 5000 Watt Axial Lead TVS
  • 5KP130 - 5000 Watt Axial Lead TVS
  • 5KP130A - 5000 Watt Axial Lead TVS
  • 5KP130C - 5000 Watt Axial Lead TVS
  • 5KP130CA - 5000 Watt Axial Lead TVS
  • 5KP13A - 5000 Watt Axial Lead TVS
  • 5KP10 - 5000 Watt Axial Lead TVS

Full PDF Text Transcription

Click to expand full text

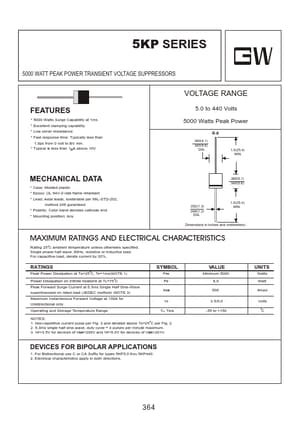

5KP SERIES 5000 WATT PEAK POWER TRANSIENT VOLTAGE SUPPRESSORS FEATURES * 5000 Watts Surge Capability at 1ms * Excellent clamping capability * Low zener impedance * Fast response time: Typically less than 1.0ps from 0 volt to BV min. * Typical IR less than 1 A above 10V VOLTAGE RANGE 5.0 to 440 Volts 5000 Watts Peak Power R-6 .360(9.1) .340(8.6) DIA. 1.0(25.4) MIN. MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Axial leads, solderable per MIL-STD-202, method 208 guranteed * Polarity: Color band denotes cathode end * Mounting position: Any .360(9.1) .340(8.6) .052(1.3) .048(1.2) DIA. 1.0(25.4) MIN.
