GQ2153 - CMOS POSITIVE VOLTAGE REGULATOR

Description

The GQ2153 series of positive, linear regulators feature low quiescent current (30 A typ.) with low dropout voltage, making them ideal for battery applications.

📥 Download Datasheet

Datasheet Details

Part number GQ2153
Manufacturer GTM
File Size 569.09 KB
Description CMOS POSITIVE VOLTAGE REGULATOR
Datasheet download datasheet GQ2153 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GQ2001-7R 60...132 Watt DC-DC Converters Power-One
GQ2320-7R 60...132 Watt DC-DC Converters Power-One
GQ2540-7R 60...132 Watt DC-DC Converters Power-One
GQ2660-7R 60...132 Watt DC-DC Converters Power-One

Other Datasheets by GTM

Part Number Description
GQ2113 CMOS POSITIVE VOLTAGE REGULATOR
GQ2123 CMOS POSITIVE VOLTAGE REGULATOR
GQ2131 CMOS POSITIVE VOLTAGE REGULATOR
GQ2133 CMOS POSITIVE VOLTAGE REGULATOR
GQ2141 CMOS POSITIVE VOLTAGE REGULATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

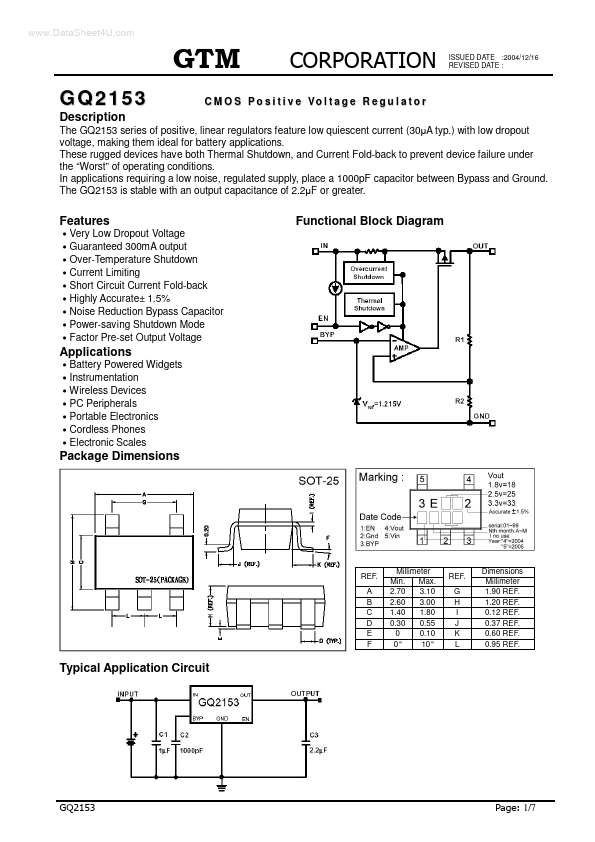

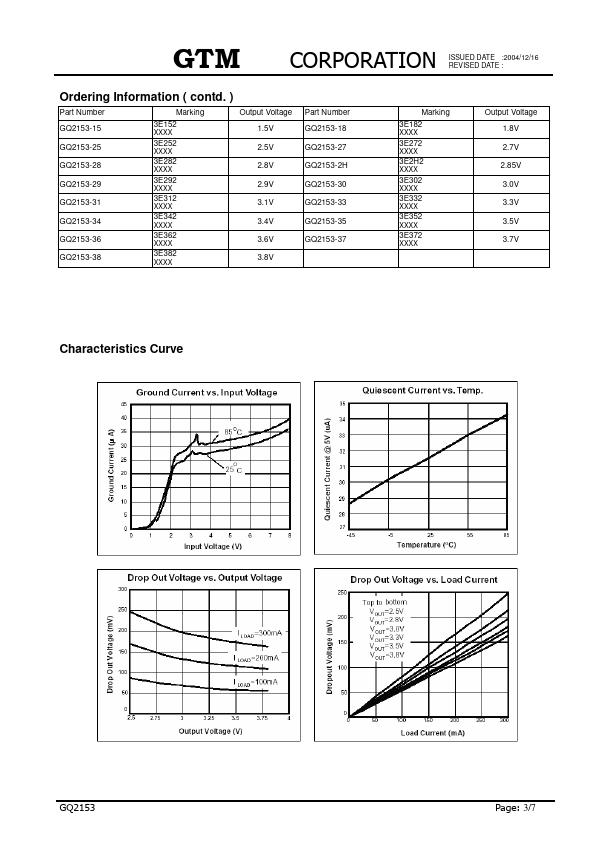

www.DataSheet4U.com ISSUED DATE :2004/12/16 REVISED DATE : GQ2153 Description C M O S P o s i t i v e Vo l t a g e R e g u l a t o r The GQ2153 series of positive, linear regulators feature low quiescent current (30 A typ.) with low dropout voltage, making them ideal for battery applications. These rugged devices have both Thermal Shutdown, and Current Fold-back to prevent device failure under the “Worst” of operating conditions. In applications requiring a low noise, regulated supply, place a 1000pF capacitor between Bypass and Ground. The GQ2153 is stable with an output capacitance of 2.2 F or greater. Features Applications Very Low Dropout Voltage Guaranteed 300mA output Over-Temperature Shutdown Current Limiting Short Circuit Current Fold-back Highly Accurate± 1.
