GM78L12, GM78L05 - POSITIVE VOLTAGE REGULATORS

GTM

The GM78L12 by GTM is a POSITIVE VOLTAGE REGULATORS. Below is the official datasheet preview.

📥 Download Datasheet

GM78L12 POSITIVE VOLTAGE REGULATORS by GTM - Datasheet Preview — Official preview page of the **GM78L12** POSITIVE VOLTAGE REGULATORS datasheet (GTM).

Datasheet Details

Part number	GM78L12, GM78L05
Manufacturer	GTM
File Size	312.46 KB
Description	POSITIVE VOLTAGE REGULATORS
Datasheet	GM78L05-GTM.pdf
Note	This datasheet PDF includes multiple part numbers: GM78L12, GM78L05. Please refer to the document for exact specifications by model.

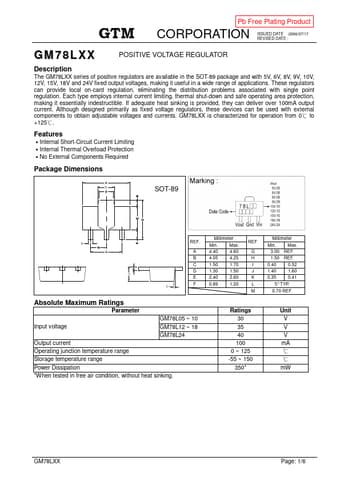

Additional preview pages of the GM78L12 datasheet.

GM78L12 Product details

Description

The GM78LXX series of positive regulators are available in the SOT-89 package and with 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V and 24V fixed output voltages, making it useful in a wide range of applications.

Features

Internal Short-Circuit Current Limiting.
Internal Thermal Overload Protection.
No External Components Required Package Dimensions SOT-89 REF. A B C D E F Absolute Maximum Ratings Parameter GM78L05 ~ 10 Input voltage GM78L12 ~ 18 GM78L24 Output current Operating junction temperature range Storage temperature range Power Dissipation.
When tested in free air condition, without heat sinking. Millimeter Min. Max. 4.40 4.60 4.05 4.25 1.50 1.70 1.30 1.50 2.40.
