GS7137 - Fast Transient Response CMOS LDO

Product Overview

📥 Download Datasheet

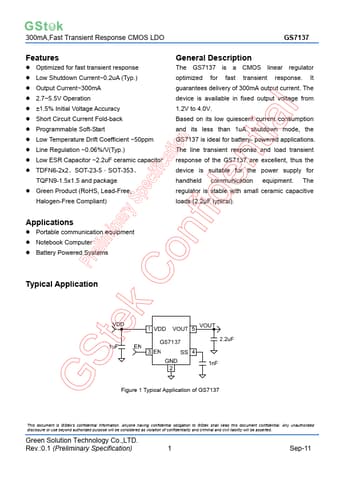

GS7137 Fast Transient Response CMOS LDO by GStek - Datasheet Preview — Datasheet preview – GS7137

Datasheet Details

Part number	GS7137
Manufacturer	GStek
File Size	837.35 KB
Description	Fast Transient Response CMOS LDO
Datasheet	GS7137 Datasheet
Additional preview pages of the GS7137 datasheet.

Product details

Description

The GS7137 is a CMOS linear regulator optimized for fast transient response.

Features

Optimized for fast transient response.
Low Shutdown Current~0.2uA (Typ. ).
Output Current~300mA.
2.7~5.5V Operation.
±1.5% Initial Voltage Accuracy.
Short Circuit Current Fold-back.
Programmable Soft-Start.
Low Temperature Drift Coefficient ~50ppm.
Line Regulation ~0.06%/V(Typ. ).
Low ESR Capacitor ~2.2uF ceramic capacitor.
TDFN6-2x2、SOT-23-5、SOT-353、 TQFN9-1.5x1.5 and package.
Green Product (RoHS, Lead-Free, Halogen-Free Compliant) Gen.
