GS881Z36BT - 9Mb Pipelined and Flow Through Synchronous NBT SRAM
Download the GS881Z36BT datasheet PDF (GS881Z18BT included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 9mb pipelined and flow through synchronous nbt sram.
Description
The GS881Z18B(T/D)/GS881Z32B(T/
Features
User-configurable Pipeline and Flow Through mode.
NBT (No Bus Turn Around) functionality allows zero wait
read-write-read bus utilization.
Fully pin-compatible with both pipelined and flow through
NtRAM™, NoBL™ and ZBT™ SRAMs.
IEEE 1149.1 JTAG-compatible Boundary Scan.
On-chip write parity checking; even or odd selectable.
GS88018AT-133 - 512K x 18/ 256K x 32/ 256K x 36 9Mb Sync Burst SRAMs(ETC)
Other Datasheets by GSI Technology
GS881Z36BT-V- 9Mb Pipelined and Flow Through Synchronous NBT SRAM
GS881Z36BD- 9Mb Pipelined and Flow Through Synchronous NBT SRAM
GS881Z36BD-V- 9Mb Pipelined and Flow Through Synchronous NBT SRAM
GS881Z36BGD- 9Mb Pipelined and Flow Through Synchronous NBT SRAM
GS881Z36BGD-V- 9Mb Pipelined and Flow Through Synchronous NBT SRAM
GS881Z36BGT- 9Mb Pipelined and Flow Through Synchronous NBT SRAM
GS881Z36BGT-V- 9Mb Pipelined and Flow Through Synchronous NBT SRAM
GS881Z36AT- 9Mb Pipelined and Flow Through Synchronous NBT SRAM

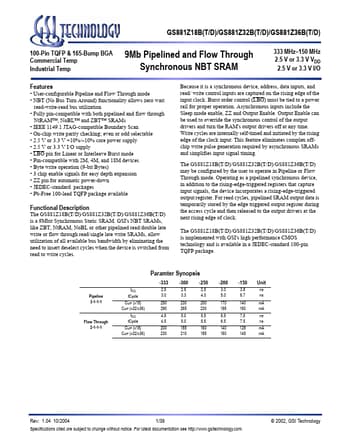

Full PDF Text Transcription
Click to expand full text
GS881Z18B(T/D)/GS881Z32B(T/D)/GS881Z36B(T/D)
100-Pin TQFP & 165-Bump BGA 9Mb Pipelined and Flow Through
Commercial Temp Industrial Temp
Synchronous NBT SRAM
333 MHz–150 MHz 2.5 V or 3.3 V VDD 2.5 V or 3.3 V I/O
Features
• User-configurable Pipeline and Flow Through mode • NBT (No Bus Turn Around) functionality allows zero wait
read-write-read bus utilization • Fully pin-compatible with both pipelined and flow through
NtRAM™, NoBL™ and ZBT™ SRAMs • IEEE 1149.1 JTAG-compatible Boundary Scan • On-chip write parity checking; even or odd selectable • 2.5 V or 3.3 V +10%/–10% core power supply • 2.5 V or 3.
