Part number:
PDT2448SR, PDT2448SR-GROUP
Manufacturer:
GROUP-TEK
File Size:
26.21 KB
Description:
Power transformers.
Note:
This datasheet PDF includes multiple part numbers: PDT2448SR, PDT2448SR-GROUP.
Please refer to the document for exact specifications by model.
PDT2448SR, PDT2448SR-GROUP, Power Transformers

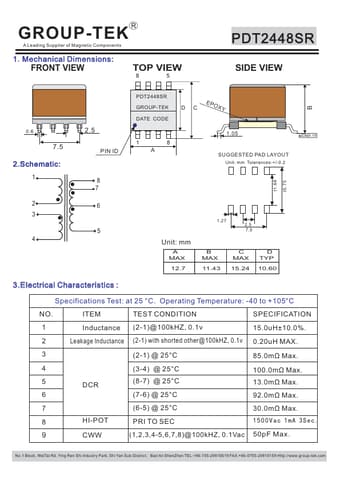

GROUP-TEK R A Leading Supplier of Magnetic Components 1.Mechanical Dimensions: FRONT VIEW TOP VIEW 85 PDT2448SR SIDE VIEW 0.6 7.5 2.Schematic: 1 2 3 4 2.5 PIN ID 8 7 6 5 PDT2448SR GROUP-TEK DATE CODE 18 A D C EPOXY 1.05 SUGGESTED PAD LAYOUT Unit: mm Tolerances:+/-0.2 Unit: mm A MAX 12.7 1.27 2.5 7.5 B MAX 11.43 C MAX 15.24 D TYP 10.60 11.68 15.75 B 0.10 3.Electrical Characteristics : Specifications Test: at 25 °С.
Operating Temperature: -40 to +105°С NO.
ITEM TEST CONDITION
